List view widget with extended database support. More...

#include <CDBListView.h>

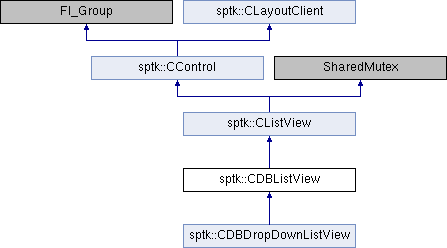

Inheritance diagram for sptk::CDBListView:

Public Member Functions
	CDBListView (const char *label=nullptr, int layoutSize=20, CLayoutAlign layoutAlign=CLayoutAlign::TOP)

	~CDBListView () override

void	database (PoolDatabaseConnection *db)

PoolDatabaseConnection *	database () const

void	sql (const String &sql, const String &recordCountSql="", const String &fastRefreshSQL="")

String	sql ()

QueryParameter &	param (const char *paramName, CRefreshKind refreshKind=CRefreshKind::LV_REFRESH_FULL)

void	keyField (const String &fieldName)

String	keyField () const

void	setup (PoolDatabaseConnection *db, const String &sql, const String &keyField)

void	refreshData (CRefreshKind refreshKind=CRefreshKind::LV_REFRESH_FULL)

DateTime	lastRefresh () const

void	maxRecords (uint32_t mr)

uint32_t	maxRecords () const

bool	recordsLimited () const

Public Member Functions inherited from sptk::CListView
	CListView (const char *label=nullptr, int layoutSize=20, CLayoutAlign layoutAlign=CLayoutAlign::TOP)
	Constructor in SPTK style. More...

	~CListView () override
	Destructor.

int	handle (int) override
	Overwritten handle()

void	resize (int x, int y, int w, int h) override
	Resizes the control and inside widgets. More...

virtual void	removeRow (uint32_t index)
	Removes row. More...

virtual void	addRow (CPackedStrings *row)
	Adds new row. More...

virtual void	addRow (int ident, const Strings &row)
	Adds new row. More...

virtual void	insertRow (uint32_t position, const Strings &row, int ident)
	Inserts new row. More...

virtual void	updateRow (uint32_t position, CPackedStrings *row)
	Updates a row. More...

virtual void	updateRow (uint32_t position, const Strings &row, int ident=0)
	Updates a row. Optional row argument may be defined inside row parameter. More...

virtual void	clear ()
	Removes all the rows.

virtual uint32_t	size () const
	Returns the row count.

virtual int	top () const
	Returns the scroll position.

virtual void	top (int index)
	Sets the scroll position. More...

int	selected (int index) const

void	show (int index)

void	show () override

void	hide (int index)

void	hide () override

int	visible (int index) const

int	visible () const

std::string	textValue () const

void	textValue (const std::string &text)

void	dataMode (CListViewDataMode dm)

CListViewDataMode	dataMode () const

Variant	data () const override

void	data (const Variant &v) override

CPackedStrings *	row (uint32_t index) const

const CSelection &	selection () const

CPackedStrings *	selectedRow () const

int	selectedIndex () const

bool	selectRow (uint32_t index, bool sel=true)

bool	displayed (uint32_t index) const

virtual void	displayRow (uint32_t index)

void	redrawRow (uint32_t index)

void	columns (const CColumnList &columns)
	Sets a new column list. More...

CColumnList &	columns ()
	Returns column list.

CColumn &	column (uint32_t col)
	Returns column informartion. More...

CColumn &	column (const char *colname)
	Returns column informartion. More...

void	addColumn (const CColumn &column)
	Adds a new column as a copy of column. More...

void	addColumn (const String &colname, VariantDataType type, uint32_t cwidth=100, bool cvisible=true)
	Adds a new column as a copy of column. More...

CControlKind	kind () const override
	SPTK RTTI information. More...

bool	autoRowHeight () const
	Returns auto row height mode as true/false.

void	autoRowHeight (bool arh)
	Sets auto row height mode as true/false.

Fl_Font	textFont () const override
	Returns text font type. More...

void	textFont (Fl_Font f) override
	Sets text font type. More...

uchar	textSize () const override

void	textSize (uchar s) override
	Sets text font size. More...

Fl_Color	textColor () const override
	Returns text color. More...

void	textColor (Fl_Color n) override
	Sets text color. More...

bool	showGrid () const
	Returns show grid mode.

void	showGrid (bool flag)
	Sets show grid mode.

bool	showStripes () const
	Returns show stripes.

void	showStripes (bool flag)
	Sets show stripes mode.

bool	showSelection () const
	Returns show selection mode.

void	showSelection (bool flag)
	Sets show selection mode.

bool	multiSelect () const
	Returns multiple selection enabled or disabled.

void	multiSelect (bool ms)
	Sets multiple selection enabled or disabled.

void	getSelections (std::vector< uint64_t > &selection) const
	Returns a selected rows ID list.

void	setSelections (const std::vector< uint64_t > &selection)
	Sets a selected rows ID list.

CPackedStrings *	findCaption (const String &caption)
	Finds an item with the caption (a string in the first column). More...

CPackedStrings *	findKey (int keyValue)
	Finds an item with the key (an integer associated with the item - argument()). More...

uint32_t	fullWidth () const
	Returns maximum width of all items including the header row.

uint32_t	fullHeight () const
	Returns summary height of all items including the header row.

virtual int	findString (const std::string &str, bool select=true, uint32_t startRow=0, uint32_t endRow=0)
	Finds a string in the sort column of list view defined with sortColumn() More...

String	sortColumnName () const
	Returns sort column name.

void	sortColumn (int column, bool sortNow)
	Sets the sort column. More...

int	sortColumn () const
	Returns the sort column number.

bool	sortAscending () const
	Returns the sort direction - ascending/descending.

void	sortAscending (bool ascending, bool sortNow)
	Sets the sort direction - ascending/descending. More...

void	sort ()
	Sorts ListView rows using existing information about sort column and direction.

void	fill (DataSource &ds, const String &keyFieldName="", uint32_t recordsLimit=0, uint32_t recordsEstimated=0, CRefreshKind refreshKind=CRefreshKind::LV_REFRESH_FULL)
	Fills the list view with the data from datasource. More...

void	loadList (const xdoc::SNode &node)
	Fills the list with the data from XML node. More...

void	saveList (const xdoc::SNode &node) const
	Saves the list data into XML node. More...

bool	preferredSize (int &w, int &h) override
	Computes the optimal widgets size. More...

uint32_t	headerHeight () const
	Returns header height.

void	headerHeight (uint32_t hh)
	Sets the header height, 0 to hide headers.

uint32_t	activeRow () const
	Returns the currently active row.

bool	capitalizeColumnNames () const
	Returns true if column names are auto-capitilized.

void	capitalizeColumnNames (bool ccn)
	Defines if column names should be auto-capitilized. More...

void	terminateFill ()
	Terminate the current fill() operation (if in progress)

String	className () const override
	Returns widget class name (internal SPTK RTTI). More...

void	imageCollection (Strings &iconNames)
	Sets the images that may be referred from items. More...

Public Member Functions inherited from sptk::CControl
	CControl (const char *label, int layoutSize=20, CLayoutAlign layoutAlign=CLayoutAlign::TOP)
	Constructor in SPTK style. More...

void	resize (int x, int y, int w, int h) override
	Resizes the control and inside widgets. More...

void	draw () override
	Draws the control.

virtual int	tag () const
	Returns the control's user data tag.

virtual void	tag (int t)
	Sets the control's user data tag.

virtual Fl_Font	textFont () const
	Returns the control's text font. More...

virtual void	textFont (Fl_Font)
	Sets the control's text font. More...

virtual uchar	textSize () const
	Returns the control's text font size. More...

virtual void	textSize (uchar)
	Sets the control's text font size. More...

virtual Fl_Color	textColor () const
	Returns the control's text color. More...

virtual void	textColor (Fl_Color)
	Sets the control's text color. More...

virtual Fl_Color	labelColor () const
	Returns the control's label color.

virtual void	labelColor (Fl_Color)
	Sets the control's label color.

virtual Fl_Color	color () const
	Returns the control's background color.

virtual void	color (Fl_Color)
	Sets the control's background color.

uint32_t	flags () const
	Returns the control's flags.

void	flags (uint32_t flags)
	Sets the control's flags.

Fl_Widget *	control () const
	Returns main widget inside the container.

const String &	label () const override
	Returns control's label. More...

void	label (const String &) override
	Sets control's label. More...

Fl_Menu_ *	menu () const
	Returns control's menu.

void	menu (const Fl_Menu_Item *)
	Sets control's menu.

Fl_Font	labelFont () const
	Returns control's label font.

void	labelSize (Fl_Font f)
	Sets control's label font.

uchar	labelSize () const
	Returns control's label font size.

void	labelSize (uchar)
	Sets control's label font size.

uint32_t	labelWidth () const
	Returns control's label width.

void	labelWidth (uint32_t)
	Sets control's label width.

void	hint (const String &str)
	Sets control's hint (tooltip) More...

String	hint () const
	Returns control's hint (tooltip)

virtual int	maxLength () const
	Returns control's max input length, if applicable. More...

virtual void	maxLength (int)
	Sets control's max input length, if applicable. More...

virtual const String &	fieldName () const
	Returns control's field name for universal data connection.

virtual void	fieldName (const String &)
	Sets control's field name for universal data connection.

virtual CControlKind	kind () const =0
	Returns control's kind (internal SPTK RTTI). More...

String	className () const override
	Returns control's class name (internal SPTK RTTI). More...

virtual void	reset ()
	Sets the control to empty text (for the input entries) More...

virtual void	load (Query *)
	Loads control data from query fields. More...

virtual void	save (Query *)
	Saves control data to query params. More...

void	load (const xdoc::SNode &node, CLayoutXMLmode xmlMode) override
	Loads control data from XML. More...

void	load (const xdoc::SNode &node) override
	Loads control data from XML. More...

void	save (const xdoc::SNode &node, CLayoutXMLmode xmlMode) const override
	Saves control data to XML. More...

virtual void	save (const xdoc::SNode &node) const
	Saves control data to XML. More...

virtual bool	valid () const =0
	Returns true if the control state is valid, and the data is inside the limits (if applicable) More...

virtual Variant	data () const
	The universal data connector. More...

virtual void	data (const Variant &v)
	The universal data connector, sets control data. More...

void	fireEvent (CEvent ev, int32_t arg)
	Fires the event generated by this control.

const CEventInfo &	event () const
	Returns the last event fired by this control.

CEvent	eventType () const
	Returns the event type for the last fired by this control.

int	eventArgument () const
	Returns the event argument for the last fired by this control.

CControl &	operator= (const String &str)
	Control data assignment.

CControl &	operator= (const char *str)
	Control data assignment.

CControl &	operator= (int32_t v)
	Control data assignment.

CControl &	operator= (uint32_t v)
	Control data assignment.

CControl &	operator= (int64_t v)
	Control data assignment.

CControl &	operator= (float v)
	Control data assignment.

CControl &	operator= (double v)
	Control data assignment.

CControl &	operator= (const DateTime &dt)
	Control data assignment.

CControl &	operator= (const Field &fld)
	Control data assignment.

	operator String () const
	Control data conversion.

	operator int32_t () const
	Control data conversion.

	operator uint32_t () const
	Control data conversion.

	operator int64_t () const
	Control data conversion.

	operator uint64_t () const
	Control data conversion.

	operator float () const
	Control data conversion.

	operator double () const
	Control data conversion.

	operator DateTime () const
	Control data conversion.

Public Member Functions inherited from sptk::CLayoutClient
	CLayoutClient (Fl_Widget *widget, int layoutSize, CLayoutAlign ca)

virtual	~CLayoutClient ()

CLayoutAlign	layoutAlign () const

void	layoutAlign (CLayoutAlign al)

int	layoutSize () const

void	layoutSize (int ls)

virtual void	label (const String &l)

virtual const String &	label () const

void	name (const char *aname)

void	name (const String &aname)

const String &	name () const

virtual bool	preferredSize (int &w, int &h)

virtual bool	computeSize (int &w, int &h)

virtual String	className () const

Fl_Widget *	widget () const

virtual void	load (const xdoc::SNode &node, CLayoutXMLmode xmlMode)

virtual void	load (const std::shared_ptr< xdoc::Node > &node)

virtual void	save (const std::shared_ptr< xdoc::Node > &node, CLayoutXMLmode xmlMode) const

Static Public Member Functions
static CLayoutClient *	creator (const xdoc::SNode &node)
	Creates a widget based on the XML node information. More...

Static Public Member Functions inherited from sptk::CControl
static CControlKind	controlNameToType (const String &typeName, int &maxLength, const String &values="")
	Converts control name to control kind.

static void	defaultControlMenuCopy (Fl_Widget , void )
	Default callback function to support CControl default menu item 'Copy'.

static void	defaultControlMenuCut (Fl_Widget , void )
	Default callback function to support CControl default menu item 'Delete'.

static void	defaultControlMenuPaste (Fl_Widget , void )
	Default callback function to support CControl default menu item 'Paste'.

static void	defaultControlMenuClear (Fl_Widget , void )
	Default callback function to support CControl default menu item 'Clear'.

Additional Inherited Members
Static Public Attributes inherited from sptk::CControl
static const Fl_Menu_Item	defaultControlMenu []
	CControl default menu.

Protected Member Functions inherited from sptk::CListView
int	columnAt (int x)
	Computes which column contains x-coordinate. More...

int	find_item (int y)
	Finds an item in vertical position y. More...

void	bbox (int &X, int &Y, int &W, int &H) const
	Returns the actual size of the drawing area (internal) More...

int	hposition () const
	Returns horizontal position of the scroll.

void	hposition (int hpos)
	Sets horizontal position of the scroll. More...

int	find_id (int id) const
	Finds item with ID. More...

virtual int	get_focus ()
	Get focus callback (internal)

virtual bool	item_selected (uint32_t index) const
	Returns true if item is selected. More...

virtual void	item_select (uint32_t index, bool select)
	Selects or deselects the item. More...

virtual int	item_compute_height_all ()
	Recomputes all items height.

virtual int	item_compute_height (CPackedStrings *rowData)
	Recomputes items height. More...

virtual int	item_height (uint32_t index) const
	Recomputes items height. More...

virtual int	item_width (uint32_t index) const
	Returns item width. More...

virtual void	item_draw (uint32_t index, const CPackedStrings *rowData, int x, int y, int w, int h, int focusMode, int verticalAlign, bool paintBackground) const
	Draws a row in coordinates (internal) More...

virtual void	item_clicked (int mouse_btn)

virtual Fl_Color	item_color (int column, const CPackedStrings &rowData) const
	The function that allows to overwrite the default text color for the cell. More...

virtual void	header_draw (int x, int y, int hh) const
	Draws header (internal) More...

virtual void	header_clicked (int x)
	Header clicked mouse callback. More...

virtual bool	header_drag_position (int x)
	Returns true if x is the drag-sensitive area.

virtual void	header_dragged (int x)
	Header dragged to position x notification. More...

virtual void	header_released (int x)
	Header released in position x notification. More...

void	redraw_line (uint32_t index)
	Request to redraw line index. More...

void	redraw_lines ()
	Redraw all the lines.

void	draw () override
	General draw function. Draws everything.

void	key_changed (uint32_t index)
	Internal callback if selected another item with the different user _data (key).

void	load (Query *) override
	Loads the key value from the query. More...

void	save (Query *) override
	Saves the key value from the query. More...

void	load (const xdoc::SNode &node, CLayoutXMLmode xmlMode) override
	Loads control data from XML. More...

void	save (const xdoc::SNode &node, CLayoutXMLmode xmlMode) const override
	Saves control data to XML. More...

bool	valid () const override
	True if the data is valid. More...

virtual uint32_t	cellBorderWidth () const
	Returns the cell border width.

bool	select (uint32_t index, bool sel=true, int docallbacks=false)
	Selects the row. Internal. More...

bool	select_only (uint32_t index, bool docallbacks=false)
	Selects the only row. Internal. More...

bool	activate_row (uint32_t index)
	Selects the row. Executes the callbacks. Internal. More...

bool	select_first ()
	Selects the first row. Executes the callbacks. Internal. More...

bool	select_last ()
	Selects the last row. Executes the callbacks. Internal. More...

bool	select_next ()
	Selects the next row. Executes the callbacks. Internal. More...

bool	select_prior ()
	Selects the prior row. Executes the callbacks. Internal. More...

bool	select_next_page ()
	Selects the next page row. Executes the callbacks. Internal. More...

bool	select_prior_page ()
	Selects the prior page row. Executes the callbacks. Internal. More...

Protected Member Functions inherited from sptk::CControl
bool	containsFocus () const
	Does the control contain focus?

void	notifyFocus (bool gotFocus=true)
	Internal focus notification on focus change.

virtual void	onEnter ()
	Internal focus notification on focus change.

virtual void	onExit ()
	Internal focus notification on focus change. More...

uint32_t	labelHeight () const
	Computes the label height based on the labelFont() and labelWidth()

int	handle (int) override
	Special handle() method.

Protected Member Functions inherited from sptk::CLayoutClient
int	lastPreferredH () const

int	lastPreferredW () const

void	lastPreferredH (int height)

void	lastPreferredW (int width)

Static Protected Member Functions inherited from sptk::CListView
static void	scrollbar_callback (Fl_Widget s, void )
	Internal vertical scrollback callback.

static void	hscrollbar_callback (Fl_Widget s, void )
	Internal horizontal scrollback callback.

static void	scrollbar_width (int b)
	Changes the default scrollbar width for the class. More...

static int	scrollbar_width ()
	Returns the default scrollbar width for the class.

Static Protected Member Functions inherited from sptk::CControl
static void	internalCallback (Fl_Widget internalWidget, void data)
	Internal callback function.

Protected Attributes inherited from sptk::CListView
bool	m_capitalizeColumnNames {false}

bool	m_multipleSelection {false}

int	m_horizPosition {0}

int	m_realHorizPosition {0}

int	m_maxWidth {0}

int	m_redraw1 {0}

int	m_redraw2 {0}

uint32_t	m_top {0}

int	m_currentTextFont {0}

int	m_currentTextSize {0}

Strings	m_iconNames

CListViewDataMode	m_dataMode {CListViewDataMode::LV_DATA_UNDEFINED}
	Data mode Defines the kind of data to work through data() method. More...

int	m_mousePressedX {0}

CSelection	m_selection

std::string	m_searchPhrase

uint32_t	m_activeRow {0}

uint32_t	m_headerHeight {0}

CListViewRows	m_rows

CColumnList	m_columnList

int	m_draggingColumn {0}

int	m_draggingStarted {0}

Fl_Font	m_textFont {0}

uchar	m_textSize {0}

Fl_Color	m_textColor {0}

bool	m_showStripes {false}

bool	m_showGrid {false}

bool	m_showSelection {false}

bool	m_autoRowHeight {false}

CScrollBar	scrollbar {0, 0, 0, 0}
	Vertical scrollback.

CScrollBar	hscrollbar {0, 0, 0, 0}
	Horizontal scrollbar.

Protected Attributes inherited from sptk::CControl
bool	m_limited {false}

uint32_t	m_labelWidth {0}

Fl_Color	m_labelColor

Fl_Color	m_textColor

Fl_Font	m_textFont

uchar	m_textSize {0}

String	m_fieldName

String	m_hint

Fl_Widget *	m_control {nullptr}

int	m_tag {0}

uint32_t	m_controlFlags {0}
	Control's special flags (a bit combination of InputEntryFlags). More...

Fl_Menu_Button *	m_menuButton {nullptr}

CEventInfo	m_event

bool	m_hasFocus {false}

Protected Attributes inherited from sptk::CLayoutClient
Fl_Widget *	m_widget

String	m_name

String	m_label

CLayoutAlign	m_layoutAlign

Static Protected Attributes inherited from sptk::CListView
static int	m_scrollbarWidth

Detailed Description

List view widget with extended database support.

Constructor & Destructor Documentation

◆ CDBListView()

sptk::CDBListView::CDBListView	(	const char *	label = `nullptr`,
		int	layoutSize = `20`,
		CLayoutAlign	layoutAlign = `CLayoutAlign::TOP`
	)

Constructor in SPTK style

Parameters

label	const char *, label
layoutSize	int, widget align in layout
layoutAlign	CLayoutAlign, widget align in layout

◆ ~CDBListView()

sptk::CDBListView::~CDBListView ( )

override

Destructor

Member Function Documentation

◆ creator()

static CLayoutClient * sptk::CDBListView::creator ( const xdoc::SNode & node )

static

Creates a widget based on the XML node information.

Parameters

node	xml::Node*, an XML node with widget information

◆ database() [1/2]

PoolDatabaseConnection * sptk::CDBListView::database ( ) const

Returns the database connection

◆ database() [2/2]

void sptk::CDBListView::database ( PoolDatabaseConnection * db )

Sets the database connection

◆ keyField() [1/2]

String sptk::CDBListView::keyField ( ) const

inline

Returns key field name

◆ keyField() [2/2]

void sptk::CDBListView::keyField ( const String & fieldName )

Defines the key field name. This field name should be a part of the SQL query and contain the unique integer values so the row could be identified by that value.

Parameters

fieldName The name of the field

◆ lastRefresh()

DateTime sptk::CDBListView::lastRefresh ( ) const

inline

Returns the date and time of the last data refresh

◆ maxRecords() [1/2]

uint32_t sptk::CDBListView::maxRecords ( ) const

inline

Returns the maximum record number to fetch from the database

◆ maxRecords() [2/2]

void sptk::CDBListView::maxRecords ( uint32_t mr )

inline

Sets the maximum record number to fetch from the database

◆ param()

QueryParameter & sptk::CDBListView::param	(	const char *	paramName,
		CRefreshKind	refreshKind = `CRefreshKind::LV_REFRESH_FULL`
	)

Sets the query parameter

Parameters

paramName	The parameter Name
refreshKind	The query it belongs to (full or fast refresh)

◆ recordsLimited()

bool sptk::CDBListView::recordsLimited ( ) const

inline

Returns the records limited flag. The flag is set if the query returned more records than records limit.

◆ refreshData()

void sptk::CDBListView::refreshData ( CRefreshKind refreshKind = CRefreshKind::LV_REFRESH_FULL )

Refreshes the data with full or fast method

Parameters

refreshKind CRefreshKind, the type of refresh

◆ setup()

void sptk::CDBListView::setup	(	PoolDatabaseConnection *	db,
		const String &	sql,
		const String &	keyField
	)

Fast setup of the database connection

Parameters

db	The database connection
sql	The full refresh SQL query text
keyField	Tthe name of the key field

◆ sql() [1/2]

String sptk::CDBListView::sql ( )

Return the SQL query text

◆ sql() [2/2]

void sptk::CDBListView::sql	(	const String &	sql,
		const String &	recordCountSql = `""`,
		const String &	fastRefreshSQL = `""`
	)

Sets the SQL queries. Both full and fast refresh queries should return the same set of fields. The record count query should return only number of record.

Parameters

sql	The SQL query for full data refresh
recordCountSql	The SQL query for obtaining record count
fastRefreshSQL	The SQL query for retrieving only records changed since last refresh

The documentation for this class was generated from the following file:

CDBListView.h

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CDBListView()

◆ ~CDBListView()

Member Function Documentation

◆ creator()

◆ database() [1/2]

◆ database() [2/2]

◆ keyField() [1/2]

◆ keyField() [2/2]

◆ lastRefresh()

◆ maxRecords() [1/2]

◆ maxRecords() [2/2]

◆ param()

◆ recordsLimited()

◆ refreshData()

◆ setup()

◆ sql() [1/2]

◆ sql() [2/2]
