Base class for most of SPTK widgets. More...

#include <CControl.h>

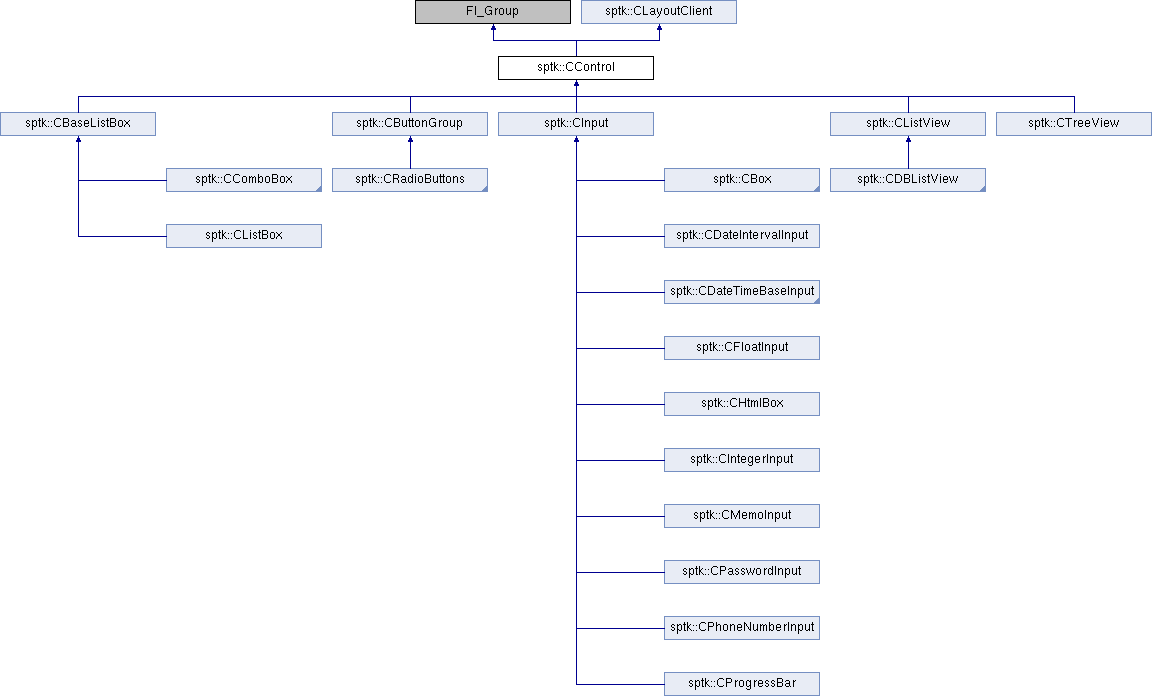

Inheritance diagram for sptk::CControl:

Public Member Functions
	CControl (const char *label, int layoutSize=20, CLayoutAlign layoutAlign=CLayoutAlign::TOP)
	Constructor in SPTK style. More...

void	resize (int x, int y, int w, int h) override
	Resizes the control and inside widgets. More...

void	draw () override
	Draws the control.

virtual int	tag () const
	Returns the control's user data tag.

virtual void	tag (int t)
	Sets the control's user data tag.

virtual Fl_Font	textFont () const
	Returns the control's text font. More...

virtual void	textFont (Fl_Font)
	Sets the control's text font. More...

virtual uchar	textSize () const
	Returns the control's text font size. More...

virtual void	textSize (uchar)
	Sets the control's text font size. More...

virtual Fl_Color	textColor () const
	Returns the control's text color. More...

virtual void	textColor (Fl_Color)
	Sets the control's text color. More...

virtual Fl_Color	labelColor () const
	Returns the control's label color.

virtual void	labelColor (Fl_Color)
	Sets the control's label color.

virtual Fl_Color	color () const
	Returns the control's background color.

virtual void	color (Fl_Color)
	Sets the control's background color.

uint32_t	flags () const
	Returns the control's flags.

void	flags (uint32_t flags)
	Sets the control's flags.

Fl_Widget *	control () const
	Returns main widget inside the container.

const String &	label () const override
	Returns control's label. More...

void	label (const String &) override
	Sets control's label. More...

Fl_Menu_ *	menu () const
	Returns control's menu.

void	menu (const Fl_Menu_Item *)
	Sets control's menu.

Fl_Font	labelFont () const
	Returns control's label font.

void	labelSize (Fl_Font f)
	Sets control's label font.

uchar	labelSize () const
	Returns control's label font size.

void	labelSize (uchar)
	Sets control's label font size.

uint32_t	labelWidth () const
	Returns control's label width.

void	labelWidth (uint32_t)
	Sets control's label width.

void	hint (const String &str)
	Sets control's hint (tooltip) More...

String	hint () const
	Returns control's hint (tooltip)

virtual int	maxLength () const
	Returns control's max input length, if applicable. More...

virtual void	maxLength (int)
	Sets control's max input length, if applicable. More...

virtual const String &	fieldName () const
	Returns control's field name for universal data connection.

virtual void	fieldName (const String &)
	Sets control's field name for universal data connection.

virtual CControlKind	kind () const =0
	Returns control's kind (internal SPTK RTTI). More...

String	className () const override
	Returns control's class name (internal SPTK RTTI). More...

virtual void	reset ()
	Sets the control to empty text (for the input entries) More...

virtual void	load (Query *)
	Loads control data from query fields. More...

virtual void	save (Query *)
	Saves control data to query params. More...

void	load (const xdoc::SNode &node, CLayoutXMLmode xmlMode) override
	Loads control data from XML. More...

void	load (const xdoc::SNode &node) override
	Loads control data from XML. More...

void	save (const xdoc::SNode &node, CLayoutXMLmode xmlMode) const override
	Saves control data to XML. More...

virtual void	save (const xdoc::SNode &node) const
	Saves control data to XML. More...

virtual bool	valid () const =0
	Returns true if the control state is valid, and the data is inside the limits (if applicable) More...

virtual Variant	data () const
	The universal data connector. More...

virtual void	data (const Variant &v)
	The universal data connector, sets control data. More...

void	fireEvent (CEvent ev, int32_t arg)
	Fires the event generated by this control.

const CEventInfo &	event () const
	Returns the last event fired by this control.

CEvent	eventType () const
	Returns the event type for the last fired by this control.

int	eventArgument () const
	Returns the event argument for the last fired by this control.

CControl &	operator= (const String &str)
	Control data assignment.

CControl &	operator= (const char *str)
	Control data assignment.

CControl &	operator= (int32_t v)
	Control data assignment.

CControl &	operator= (uint32_t v)
	Control data assignment.

CControl &	operator= (int64_t v)
	Control data assignment.

CControl &	operator= (float v)
	Control data assignment.

CControl &	operator= (double v)
	Control data assignment.

CControl &	operator= (const DateTime &dt)
	Control data assignment.

CControl &	operator= (const Field &fld)
	Control data assignment.

	operator String () const
	Control data conversion.

	operator int32_t () const
	Control data conversion.

	operator uint32_t () const
	Control data conversion.

	operator int64_t () const
	Control data conversion.

	operator uint64_t () const
	Control data conversion.

	operator float () const
	Control data conversion.

	operator double () const
	Control data conversion.

	operator DateTime () const
	Control data conversion.

Public Member Functions inherited from sptk::CLayoutClient
	CLayoutClient (Fl_Widget *widget, int layoutSize, CLayoutAlign ca)

virtual	~CLayoutClient ()

CLayoutAlign	layoutAlign () const

void	layoutAlign (CLayoutAlign al)

int	layoutSize () const

void	layoutSize (int ls)

virtual void	label (const String &l)

virtual const String &	label () const

void	name (const char *aname)

void	name (const String &aname)

const String &	name () const

virtual bool	preferredSize (int &w, int &h)

virtual bool	computeSize (int &w, int &h)

virtual String	className () const

Fl_Widget *	widget () const

virtual void	load (const xdoc::SNode &node, CLayoutXMLmode xmlMode)

virtual void	load (const std::shared_ptr< xdoc::Node > &node)

virtual void	save (const std::shared_ptr< xdoc::Node > &node, CLayoutXMLmode xmlMode) const

Static Public Member Functions
static CControlKind	controlNameToType (const String &typeName, int &maxLength, const String &values="")
	Converts control name to control kind.

static void	defaultControlMenuCopy (Fl_Widget , void )
	Default callback function to support CControl default menu item 'Copy'.

static void	defaultControlMenuCut (Fl_Widget , void )
	Default callback function to support CControl default menu item 'Delete'.

static void	defaultControlMenuPaste (Fl_Widget , void )
	Default callback function to support CControl default menu item 'Paste'.

static void	defaultControlMenuClear (Fl_Widget , void )
	Default callback function to support CControl default menu item 'Clear'.

Static Public Attributes
static const Fl_Menu_Item	defaultControlMenu []
	CControl default menu.

Protected Member Functions
bool	containsFocus () const
	Does the control contain focus?

void	notifyFocus (bool gotFocus=true)
	Internal focus notification on focus change.

virtual void	onEnter ()
	Internal focus notification on focus change.

virtual void	onExit ()
	Internal focus notification on focus change. More...

uint32_t	labelHeight () const
	Computes the label height based on the labelFont() and labelWidth()

int	handle (int) override
	Special handle() method.

Protected Member Functions inherited from sptk::CLayoutClient
int	lastPreferredH () const

int	lastPreferredW () const

void	lastPreferredH (int height)

void	lastPreferredW (int width)

Static Protected Member Functions
static void	internalCallback (Fl_Widget internalWidget, void data)
	Internal callback function.

Protected Attributes
bool	m_limited {false}

uint32_t	m_labelWidth {0}

Fl_Color	m_labelColor

Fl_Color	m_textColor

Fl_Font	m_textFont

uchar	m_textSize {0}

String	m_fieldName

String	m_hint

Fl_Widget *	m_control {nullptr}

int	m_tag {0}

uint32_t	m_controlFlags {0}
	Control's special flags (a bit combination of InputEntryFlags). More...

Fl_Menu_Button *	m_menuButton {nullptr}

CEventInfo	m_event

bool	m_hasFocus {false}

Protected Attributes inherited from sptk::CLayoutClient
Fl_Widget *	m_widget

String	m_name

String	m_label

CLayoutAlign	m_layoutAlign

Friends
class	CInternalComboBoxPanel

class	CEditor

class	CBaseButton

class	CRadioButton

class	CCheckButton

class	CInput_

Detailed Description

Base class for most of SPTK widgets.

It is a group used as a container for the widget(s) inside. Every CControl has a field name, and it can be a layout client.

Constructor & Destructor Documentation

◆ CControl()

sptk::CControl::CControl	(	const char *	label,
		int	layoutSize = `20`,
		CLayoutAlign	layoutAlign = `CLayoutAlign::TOP`
	)

explicit

Constructor in SPTK style.

Parameters

label	const char *, label
layoutSize	int, widget align in layout
layoutAlign	CLayoutAlign, widget align in layout

Member Function Documentation

◆ className()

String sptk::CControl::className ( ) const

inlineoverridevirtual

Returns control's class name (internal SPTK RTTI).

Reimplemented from sptk::CLayoutClient.

Reimplemented in sptk::CSplitter, sptk::CDateIntervalInput, sptk::CDateInput, sptk::CTimeInput, sptk::CDateTimeInput, sptk::CFloatInput, sptk::CFontComboBox, sptk::CHtmlBox, sptk::CInput, sptk::CIntegerInput, sptk::CListView, sptk::CMemoInput, sptk::CPhoneNumberInput, sptk::CRadioButtons, and sptk::CTreeView.

◆ data() [1/2]

virtual Variant sptk::CControl::data ( ) const

inlinevirtual

The universal data connector.

Returns: control data

Reimplemented in sptk::CBox, sptk::CButtonGroup, sptk::CCheckButtons, sptk::CBaseListBox, sptk::CDateIntervalInput, sptk::CDateInput, sptk::CDateTimeInput, sptk::CHtmlBox, sptk::CInput, sptk::CListView, sptk::CMemoInput, sptk::CPhoneNumberInput, sptk::CProgressBar, and sptk::CTreeView.

◆ data() [2/2]

virtual void sptk::CControl::data ( const Variant & v )

inlinevirtual

The universal data connector, sets control data.

Reimplemented in sptk::CBox, sptk::CButtonGroup, sptk::CCheckButtons, sptk::CBaseListBox, sptk::CDateIntervalInput, sptk::CDateInput, sptk::CDateTimeInput, sptk::CHtmlBox, sptk::CInput, sptk::CListView, sptk::CMemoInput, sptk::CPhoneNumberInput, sptk::CProgressBar, and sptk::CTreeView.

◆ hint()

void sptk::CControl::hint ( const String & str )

inline

Sets control's hint (tooltip)

Parameters

str	Tooltip text

◆ kind()

virtual CControlKind sptk::CControl::kind ( ) const

pure virtual

Returns control's kind (internal SPTK RTTI).

Implemented in sptk::CBox, sptk::CCheckButtons, sptk::CComboBox, sptk::CListBox, sptk::CDateIntervalInput, sptk::CDateInput, sptk::CTimeInput, sptk::CDateTimeInput, sptk::CFloatInput, sptk::CHtmlBox, sptk::CInput, sptk::CIntegerInput, sptk::CListView, sptk::CMemoInput, sptk::CPhoneNumberInput, sptk::CRadioButtons, and sptk::CTreeView.

◆ label() [1/2]

const String & sptk::CControl::label ( ) const

inlineoverridevirtual

Returns control's label.

Reimplemented from sptk::CLayoutClient.

◆ label() [2/2]

void sptk::CControl::label ( const String & )

overridevirtual

Sets control's label.

Reimplemented from sptk::CLayoutClient.

◆ load() [1/3]

void sptk::CControl::load ( const xdoc::SNode & node )

inlineoverride

Loads control data from XML.

Layout information may also include widget size and position, as well as visible() and active() states

Parameters

node	the XML node

References DATA.

◆ load() [2/3]

void sptk::CControl::load	(	const xdoc::SNode &	node,
		CLayoutXMLmode	xmlMode
	)

overridevirtual

Loads control data from XML.

Layout information may also include widget size and position, as well as visible() and active() states

Parameters

node	the XML node
xmlMode	the mode defining how the layout and/or data should be stored

Reimplemented from sptk::CLayoutClient.

Reimplemented in sptk::CDateTimeBaseInput, sptk::CInput, and sptk::CListView.

◆ load() [3/3]

virtual void sptk::CControl::load ( Query * )

inlinevirtual

Loads control data from query fields.

Reimplemented in sptk::CButtonGroup, sptk::CBaseListBox, sptk::CDateTimeBaseInput, sptk::CInput, sptk::CListView, and sptk::CTreeView.

Referenced by sptk::CInput::load().

◆ maxLength() [1/2]

virtual int sptk::CControl::maxLength ( ) const

inlinevirtual

Returns control's max input length, if applicable.

Reimplemented in sptk::CInput.

◆ maxLength() [2/2]

virtual void sptk::CControl::maxLength ( int )

inlinevirtual

Sets control's max input length, if applicable.

Reimplemented in sptk::CInput.

◆ onExit()

virtual void sptk::CControl::onExit ( )

protectedvirtual

Internal focus notification on focus change.

Reimplemented in sptk::CDBDropDownListView.

◆ reset()

virtual void sptk::CControl::reset ( )

inlinevirtual

Sets the control to empty text (for the input entries)

Also sets no selection state / default selection (for the lists)

◆ resize()

void sptk::CControl::resize	(	int	x,
		int	y,
		int	w,
		int	h
	)

override

Resizes the control and inside widgets.

Parameters

x	int, x-position
y	int, y-position
w	int, width
h	int, height

◆ save() [1/3]

virtual void sptk::CControl::save ( const xdoc::SNode & node ) const

inlinevirtual

Saves control data to XML.

Layout information may also include widget size and position, as well as visible() and active() states

Parameters

node	the XML node

Reimplemented in sptk::CButtonGroup, and sptk::CTreeView.

References DATA.

◆ save() [2/3]

void sptk::CControl::save	(	const xdoc::SNode &	node,
		CLayoutXMLmode	xmlMode
	)		const

override

Saves control data to XML.

Layout information may also include widget size and position, as well as visible() and active() states

Parameters

node	the XML node
xmlMode	the mode defining how the layout and/or data should be stored

◆ save() [3/3]

virtual void sptk::CControl::save ( Query * )

inlinevirtual

Saves control data to query params.

Reimplemented in sptk::CButtonGroup, sptk::CBaseListBox, sptk::CDateTimeBaseInput, sptk::CFloatInput, sptk::CInput, sptk::CIntegerInput, sptk::CListView, sptk::CMemoInput, and sptk::CTreeView.

Referenced by sptk::CInput::save().

◆ textColor() [1/2]

virtual Fl_Color sptk::CControl::textColor ( ) const

virtual

Returns the control's text color.

Reimplemented in sptk::CListView.

◆ textColor() [2/2]

virtual void sptk::CControl::textColor ( Fl_Color )

virtual

Sets the control's text color.

Reimplemented in sptk::CListView.

◆ textFont() [1/2]

virtual Fl_Font sptk::CControl::textFont ( ) const

virtual

Returns the control's text font.

Reimplemented in sptk::CBox, sptk::CHtmlBox, sptk::CInput, sptk::CListView, and sptk::CMemoInput.

◆ textFont() [2/2]

virtual void sptk::CControl::textFont ( Fl_Font )

virtual

Sets the control's text font.

Reimplemented in sptk::CBox, sptk::CHtmlBox, sptk::CInput, sptk::CListView, and sptk::CMemoInput.

◆ textSize() [1/2]

virtual uchar sptk::CControl::textSize ( ) const

virtual

Returns the control's text font size.

Reimplemented in sptk::CBox, sptk::CHtmlBox, sptk::CInput, sptk::CListView, and sptk::CMemoInput.

◆ textSize() [2/2]

virtual void sptk::CControl::textSize ( uchar )

virtual

Sets the control's text font size.

Reimplemented in sptk::CBox, sptk::CHtmlBox, sptk::CInput, sptk::CListView, and sptk::CMemoInput.

◆ valid()

virtual bool sptk::CControl::valid ( ) const

pure virtual

Returns true if the control state is valid, and the data is inside the limits (if applicable)

Implemented in sptk::CButtonGroup, sptk::CBaseListBox, sptk::CDateIntervalInput, sptk::CDateTimeBaseInput, sptk::CFloatInput, sptk::CInput, sptk::CIntegerInput, sptk::CListView, sptk::CPhoneNumberInput, and sptk::CTreeView.

Member Data Documentation

◆ m_control

Fl_Widget* sptk::CControl::m_control {nullptr}

protected

The main widget inside the control.

◆ m_controlFlags

uint32_t sptk::CControl::m_controlFlags {0}

protected

Control's special flags (a bit combination of InputEntryFlags).

See also: InputEntryFlags for details.

◆ m_event

CEventInfo sptk::CControl::m_event

protected

The last SPTK event inside this control.

◆ m_fieldName

String sptk::CControl::m_fieldName

protected

Field name for the universal data connection

◆ m_hasFocus

bool sptk::CControl::m_hasFocus {false}

protected

Does the control have focus?

◆ m_hint

String sptk::CControl::m_hint

protected

The text of the hint

◆ m_labelColor

Fl_Color sptk::CControl::m_labelColor

protected

Control label color

◆ m_labelWidth

uint32_t sptk::CControl::m_labelWidth {0}

protected

Control label width (on the left)

◆ m_limited

bool sptk::CControl::m_limited {false}

protected

Control has the defined min and max values

◆ m_menuButton

Fl_Menu_Button* sptk::CControl::m_menuButton {nullptr}

protected

Control's menu button - to show right-mouse click menu

◆ m_tag

int sptk::CControl::m_tag {0}

protected

Control's special data tag

◆ m_textColor

Fl_Color sptk::CControl::m_textColor

protected

Control text color

◆ m_textFont

Fl_Font sptk::CControl::m_textFont

protected

Control text font

◆ m_textSize

uchar sptk::CControl::m_textSize {0}

protected

Control text font size

The documentation for this class was generated from the following file:

CControl.h

Public Member Functions

Static Public Member Functions

Static Public Attributes

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Friends

Detailed Description

Constructor & Destructor Documentation

◆ CControl()

Member Function Documentation

◆ className()

◆ data() [1/2]

◆ data() [2/2]

◆ hint()

◆ kind()

◆ label() [1/2]

◆ label() [2/2]

◆ load() [1/3]

◆ load() [2/3]

◆ load() [3/3]

◆ maxLength() [1/2]

◆ maxLength() [2/2]

◆ onExit()

◆ reset()

◆ resize()

◆ save() [1/3]

◆ save() [2/3]

◆ save() [3/3]

◆ textColor() [1/2]

◆ textColor() [2/2]

◆ textFont() [1/2]

◆ textFont() [2/2]

◆ textSize() [1/2]

◆ textSize() [2/2]

◆ valid()

Member Data Documentation

◆ m_control

◆ m_controlFlags

◆ m_event

◆ m_fieldName

◆ m_hasFocus

◆ m_hint

◆ m_labelColor

◆ m_labelWidth

◆ m_limited

◆ m_menuButton

◆ m_tag

◆ m_textColor

◆ m_textFont

◆ m_textSize
