List view widget. More...

#include <CListView.h>

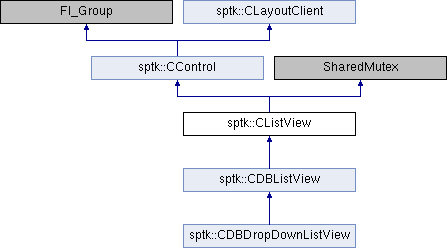

Inheritance diagram for sptk::CListView:

Public Member Functions
	CListView (const char *label=nullptr, int layoutSize=20, CLayoutAlign layoutAlign=CLayoutAlign::TOP)
	Constructor in SPTK style. More...

	~CListView () override
	Destructor.

int	handle (int) override
	Overwritten handle()

void	resize (int x, int y, int w, int h) override
	Resizes the control and inside widgets. More...

virtual void	removeRow (uint32_t index)
	Removes row. More...

virtual void	addRow (CPackedStrings *row)
	Adds new row. More...

virtual void	addRow (int ident, const Strings &row)
	Adds new row. More...

virtual void	insertRow (uint32_t position, const Strings &row, int ident)
	Inserts new row. More...

virtual void	updateRow (uint32_t position, CPackedStrings *row)
	Updates a row. More...

virtual void	updateRow (uint32_t position, const Strings &row, int ident=0)
	Updates a row. Optional row argument may be defined inside row parameter. More...

virtual void	clear ()
	Removes all the rows.

virtual uint32_t	size () const
	Returns the row count.

virtual int	top () const
	Returns the scroll position.

virtual void	top (int index)
	Sets the scroll position. More...

int	selected (int index) const

void	show (int index)

void	show () override

void	hide (int index)

void	hide () override

int	visible (int index) const

int	visible () const

std::string	textValue () const

void	textValue (const std::string &text)

void	dataMode (CListViewDataMode dm)

CListViewDataMode	dataMode () const

Variant	data () const override

void	data (const Variant &v) override

CPackedStrings *	row (uint32_t index) const

const CSelection &	selection () const

CPackedStrings *	selectedRow () const

int	selectedIndex () const

bool	selectRow (uint32_t index, bool sel=true)

bool	displayed (uint32_t index) const

virtual void	displayRow (uint32_t index)

void	redrawRow (uint32_t index)

void	columns (const CColumnList &columns)
	Sets a new column list. More...

CColumnList &	columns ()
	Returns column list.

CColumn &	column (uint32_t col)
	Returns column informartion. More...

CColumn &	column (const char *colname)
	Returns column informartion. More...

void	addColumn (const CColumn &column)
	Adds a new column as a copy of column. More...

void	addColumn (const String &colname, VariantDataType type, uint32_t cwidth=100, bool cvisible=true)
	Adds a new column as a copy of column. More...

CControlKind	kind () const override
	SPTK RTTI information. More...

bool	autoRowHeight () const
	Returns auto row height mode as true/false.

void	autoRowHeight (bool arh)
	Sets auto row height mode as true/false.

Fl_Font	textFont () const override
	Returns text font type. More...

void	textFont (Fl_Font f) override
	Sets text font type. More...

uchar	textSize () const override

void	textSize (uchar s) override
	Sets text font size. More...

Fl_Color	textColor () const override
	Returns text color. More...

void	textColor (Fl_Color n) override
	Sets text color. More...

bool	showGrid () const
	Returns show grid mode.

void	showGrid (bool flag)
	Sets show grid mode.

bool	showStripes () const
	Returns show stripes.

void	showStripes (bool flag)
	Sets show stripes mode.

bool	showSelection () const
	Returns show selection mode.

void	showSelection (bool flag)
	Sets show selection mode.

bool	multiSelect () const
	Returns multiple selection enabled or disabled.

void	multiSelect (bool ms)
	Sets multiple selection enabled or disabled.

void	getSelections (std::vector< uint64_t > &selection) const
	Returns a selected rows ID list.

void	setSelections (const std::vector< uint64_t > &selection)
	Sets a selected rows ID list.

CPackedStrings *	findCaption (const String &caption)
	Finds an item with the caption (a string in the first column). More...

CPackedStrings *	findKey (int keyValue)
	Finds an item with the key (an integer associated with the item - argument()). More...

uint32_t	fullWidth () const
	Returns maximum width of all items including the header row.

uint32_t	fullHeight () const
	Returns summary height of all items including the header row.

virtual int	findString (const std::string &str, bool select=true, uint32_t startRow=0, uint32_t endRow=0)
	Finds a string in the sort column of list view defined with sortColumn() More...

String	sortColumnName () const
	Returns sort column name.

void	sortColumn (int column, bool sortNow)
	Sets the sort column. More...

int	sortColumn () const
	Returns the sort column number.

bool	sortAscending () const
	Returns the sort direction - ascending/descending.

void	sortAscending (bool ascending, bool sortNow)
	Sets the sort direction - ascending/descending. More...

void	sort ()
	Sorts ListView rows using existing information about sort column and direction.

void	fill (DataSource &ds, const String &keyFieldName="", uint32_t recordsLimit=0, uint32_t recordsEstimated=0, CRefreshKind refreshKind=CRefreshKind::LV_REFRESH_FULL)
	Fills the list view with the data from datasource. More...

void	loadList (const xdoc::SNode &node)
	Fills the list with the data from XML node. More...

void	saveList (const xdoc::SNode &node) const
	Saves the list data into XML node. More...

bool	preferredSize (int &w, int &h) override
	Computes the optimal widgets size. More...

uint32_t	headerHeight () const
	Returns header height.

void	headerHeight (uint32_t hh)
	Sets the header height, 0 to hide headers.

uint32_t	activeRow () const
	Returns the currently active row.

bool	capitalizeColumnNames () const
	Returns true if column names are auto-capitilized.

void	capitalizeColumnNames (bool ccn)
	Defines if column names should be auto-capitilized. More...

void	terminateFill ()
	Terminate the current fill() operation (if in progress)

String	className () const override
	Returns widget class name (internal SPTK RTTI). More...

void	imageCollection (Strings &iconNames)
	Sets the images that may be referred from items. More...

Public Member Functions inherited from sptk::CControl
	CControl (const char *label, int layoutSize=20, CLayoutAlign layoutAlign=CLayoutAlign::TOP)
	Constructor in SPTK style. More...

void	resize (int x, int y, int w, int h) override
	Resizes the control and inside widgets. More...

void	draw () override
	Draws the control.

virtual int	tag () const
	Returns the control's user data tag.

virtual void	tag (int t)
	Sets the control's user data tag.

virtual Fl_Font	textFont () const
	Returns the control's text font. More...

virtual void	textFont (Fl_Font)
	Sets the control's text font. More...

virtual uchar	textSize () const
	Returns the control's text font size. More...

virtual void	textSize (uchar)
	Sets the control's text font size. More...

virtual Fl_Color	textColor () const
	Returns the control's text color. More...

virtual void	textColor (Fl_Color)
	Sets the control's text color. More...

virtual Fl_Color	labelColor () const
	Returns the control's label color.

virtual void	labelColor (Fl_Color)
	Sets the control's label color.

virtual Fl_Color	color () const
	Returns the control's background color.

virtual void	color (Fl_Color)
	Sets the control's background color.

uint32_t	flags () const
	Returns the control's flags.

void	flags (uint32_t flags)
	Sets the control's flags.

Fl_Widget *	control () const
	Returns main widget inside the container.

const String &	label () const override
	Returns control's label. More...

void	label (const String &) override
	Sets control's label. More...

Fl_Menu_ *	menu () const
	Returns control's menu.

void	menu (const Fl_Menu_Item *)
	Sets control's menu.

Fl_Font	labelFont () const
	Returns control's label font.

void	labelSize (Fl_Font f)
	Sets control's label font.

uchar	labelSize () const
	Returns control's label font size.

void	labelSize (uchar)
	Sets control's label font size.

uint32_t	labelWidth () const
	Returns control's label width.

void	labelWidth (uint32_t)
	Sets control's label width.

void	hint (const String &str)
	Sets control's hint (tooltip) More...

String	hint () const
	Returns control's hint (tooltip)

virtual int	maxLength () const
	Returns control's max input length, if applicable. More...

virtual void	maxLength (int)
	Sets control's max input length, if applicable. More...

virtual const String &	fieldName () const
	Returns control's field name for universal data connection.

virtual void	fieldName (const String &)
	Sets control's field name for universal data connection.

virtual CControlKind	kind () const =0
	Returns control's kind (internal SPTK RTTI). More...

String	className () const override
	Returns control's class name (internal SPTK RTTI). More...

virtual void	reset ()
	Sets the control to empty text (for the input entries) More...

virtual void	load (Query *)
	Loads control data from query fields. More...

virtual void	save (Query *)
	Saves control data to query params. More...

void	load (const xdoc::SNode &node, CLayoutXMLmode xmlMode) override
	Loads control data from XML. More...

void	load (const xdoc::SNode &node) override
	Loads control data from XML. More...

void	save (const xdoc::SNode &node, CLayoutXMLmode xmlMode) const override
	Saves control data to XML. More...

virtual void	save (const xdoc::SNode &node) const
	Saves control data to XML. More...

virtual bool	valid () const =0
	Returns true if the control state is valid, and the data is inside the limits (if applicable) More...

virtual Variant	data () const
	The universal data connector. More...

virtual void	data (const Variant &v)
	The universal data connector, sets control data. More...

void	fireEvent (CEvent ev, int32_t arg)
	Fires the event generated by this control.

const CEventInfo &	event () const
	Returns the last event fired by this control.

CEvent	eventType () const
	Returns the event type for the last fired by this control.

int	eventArgument () const
	Returns the event argument for the last fired by this control.

CControl &	operator= (const String &str)
	Control data assignment.

CControl &	operator= (const char *str)
	Control data assignment.

CControl &	operator= (int32_t v)
	Control data assignment.

CControl &	operator= (uint32_t v)
	Control data assignment.

CControl &	operator= (int64_t v)
	Control data assignment.

CControl &	operator= (float v)
	Control data assignment.

CControl &	operator= (double v)
	Control data assignment.

CControl &	operator= (const DateTime &dt)
	Control data assignment.

CControl &	operator= (const Field &fld)
	Control data assignment.

	operator String () const
	Control data conversion.

	operator int32_t () const
	Control data conversion.

	operator uint32_t () const
	Control data conversion.

	operator int64_t () const
	Control data conversion.

	operator uint64_t () const
	Control data conversion.

	operator float () const
	Control data conversion.

	operator double () const
	Control data conversion.

	operator DateTime () const
	Control data conversion.

Public Member Functions inherited from sptk::CLayoutClient
	CLayoutClient (Fl_Widget *widget, int layoutSize, CLayoutAlign ca)

virtual	~CLayoutClient ()

CLayoutAlign	layoutAlign () const

void	layoutAlign (CLayoutAlign al)

int	layoutSize () const

void	layoutSize (int ls)

virtual void	label (const String &l)

virtual const String &	label () const

void	name (const char *aname)

void	name (const String &aname)

const String &	name () const

virtual bool	preferredSize (int &w, int &h)

virtual bool	computeSize (int &w, int &h)

virtual String	className () const

Fl_Widget *	widget () const

virtual void	load (const xdoc::SNode &node, CLayoutXMLmode xmlMode)

virtual void	load (const std::shared_ptr< xdoc::Node > &node)

virtual void	save (const std::shared_ptr< xdoc::Node > &node, CLayoutXMLmode xmlMode) const

Protected Member Functions
int	columnAt (int x)
	Computes which column contains x-coordinate. More...

int	find_item (int y)
	Finds an item in vertical position y. More...

void	bbox (int &X, int &Y, int &W, int &H) const
	Returns the actual size of the drawing area (internal) More...

int	hposition () const
	Returns horizontal position of the scroll.

void	hposition (int hpos)
	Sets horizontal position of the scroll. More...

int	find_id (int id) const
	Finds item with ID. More...

virtual int	get_focus ()
	Get focus callback (internal)

virtual bool	item_selected (uint32_t index) const
	Returns true if item is selected. More...

virtual void	item_select (uint32_t index, bool select)
	Selects or deselects the item. More...

virtual int	item_compute_height_all ()
	Recomputes all items height.

virtual int	item_compute_height (CPackedStrings *rowData)
	Recomputes items height. More...

virtual int	item_height (uint32_t index) const
	Recomputes items height. More...

virtual int	item_width (uint32_t index) const
	Returns item width. More...

virtual void	item_draw (uint32_t index, const CPackedStrings *rowData, int x, int y, int w, int h, int focusMode, int verticalAlign, bool paintBackground) const
	Draws a row in coordinates (internal) More...

virtual void	item_clicked (int mouse_btn)

virtual Fl_Color	item_color (int column, const CPackedStrings &rowData) const
	The function that allows to overwrite the default text color for the cell. More...

virtual void	header_draw (int x, int y, int hh) const
	Draws header (internal) More...

virtual void	header_clicked (int x)
	Header clicked mouse callback. More...

virtual bool	header_drag_position (int x)
	Returns true if x is the drag-sensitive area.

virtual void	header_dragged (int x)
	Header dragged to position x notification. More...

virtual void	header_released (int x)
	Header released in position x notification. More...

void	redraw_line (uint32_t index)
	Request to redraw line index. More...

void	redraw_lines ()
	Redraw all the lines.

void	draw () override
	General draw function. Draws everything.

void	key_changed (uint32_t index)
	Internal callback if selected another item with the different user _data (key).

void	load (Query *) override
	Loads the key value from the query. More...

void	save (Query *) override
	Saves the key value from the query. More...

void	load (const xdoc::SNode &node, CLayoutXMLmode xmlMode) override
	Loads control data from XML. More...

void	save (const xdoc::SNode &node, CLayoutXMLmode xmlMode) const override
	Saves control data to XML. More...

bool	valid () const override
	True if the data is valid. More...

virtual uint32_t	cellBorderWidth () const
	Returns the cell border width.

bool	select (uint32_t index, bool sel=true, int docallbacks=false)
	Selects the row. Internal. More...

bool	select_only (uint32_t index, bool docallbacks=false)
	Selects the only row. Internal. More...

bool	activate_row (uint32_t index)
	Selects the row. Executes the callbacks. Internal. More...

bool	select_first ()
	Selects the first row. Executes the callbacks. Internal. More...

bool	select_last ()
	Selects the last row. Executes the callbacks. Internal. More...

bool	select_next ()
	Selects the next row. Executes the callbacks. Internal. More...

bool	select_prior ()
	Selects the prior row. Executes the callbacks. Internal. More...

bool	select_next_page ()
	Selects the next page row. Executes the callbacks. Internal. More...

bool	select_prior_page ()
	Selects the prior page row. Executes the callbacks. Internal. More...

Protected Member Functions inherited from sptk::CControl
bool	containsFocus () const
	Does the control contain focus?

void	notifyFocus (bool gotFocus=true)
	Internal focus notification on focus change.

virtual void	onEnter ()
	Internal focus notification on focus change.

virtual void	onExit ()
	Internal focus notification on focus change. More...

uint32_t	labelHeight () const
	Computes the label height based on the labelFont() and labelWidth()

int	handle (int) override
	Special handle() method.

Protected Member Functions inherited from sptk::CLayoutClient
int	lastPreferredH () const

int	lastPreferredW () const

void	lastPreferredH (int height)

void	lastPreferredW (int width)

Static Protected Member Functions
static void	scrollbar_callback (Fl_Widget s, void )
	Internal vertical scrollback callback.

static void	hscrollbar_callback (Fl_Widget s, void )
	Internal horizontal scrollback callback.

static void	scrollbar_width (int b)
	Changes the default scrollbar width for the class. More...

static int	scrollbar_width ()
	Returns the default scrollbar width for the class.

Static Protected Member Functions inherited from sptk::CControl
static void	internalCallback (Fl_Widget internalWidget, void data)
	Internal callback function.

Protected Attributes
bool	m_capitalizeColumnNames {false}

bool	m_multipleSelection {false}

int	m_horizPosition {0}

int	m_realHorizPosition {0}

int	m_maxWidth {0}

int	m_redraw1 {0}

int	m_redraw2 {0}

uint32_t	m_top {0}

int	m_currentTextFont {0}

int	m_currentTextSize {0}

Strings	m_iconNames

CListViewDataMode	m_dataMode {CListViewDataMode::LV_DATA_UNDEFINED}
	Data mode Defines the kind of data to work through data() method. More...

int	m_mousePressedX {0}

CSelection	m_selection

std::string	m_searchPhrase

uint32_t	m_activeRow {0}

uint32_t	m_headerHeight {0}

CListViewRows	m_rows

CColumnList	m_columnList

int	m_draggingColumn {0}

int	m_draggingStarted {0}

Fl_Font	m_textFont {0}

uchar	m_textSize {0}

Fl_Color	m_textColor {0}

bool	m_showStripes {false}

bool	m_showGrid {false}

bool	m_showSelection {false}

bool	m_autoRowHeight {false}

CScrollBar	scrollbar {0, 0, 0, 0}
	Vertical scrollback.

CScrollBar	hscrollbar {0, 0, 0, 0}
	Horizontal scrollbar.

Protected Attributes inherited from sptk::CControl
bool	m_limited {false}

uint32_t	m_labelWidth {0}

Fl_Color	m_labelColor

Fl_Color	m_textColor

Fl_Font	m_textFont

uchar	m_textSize {0}

String	m_fieldName

String	m_hint

Fl_Widget *	m_control {nullptr}

int	m_tag {0}

uint32_t	m_controlFlags {0}
	Control's special flags (a bit combination of InputEntryFlags). More...

Fl_Menu_Button *	m_menuButton {nullptr}

CEventInfo	m_event

bool	m_hasFocus {false}

Protected Attributes inherited from sptk::CLayoutClient
Fl_Widget *	m_widget

String	m_name

String	m_label

CLayoutAlign	m_layoutAlign

Static Protected Attributes
static int	m_scrollbarWidth

Friends
class	CInternalComboBoxPanel

class	CDBDropDownList

Additional Inherited Members
Static Public Member Functions inherited from sptk::CControl
static CControlKind	controlNameToType (const String &typeName, int &maxLength, const String &values="")
	Converts control name to control kind.

static void	defaultControlMenuCopy (Fl_Widget , void )
	Default callback function to support CControl default menu item 'Copy'.

static void	defaultControlMenuCut (Fl_Widget , void )
	Default callback function to support CControl default menu item 'Delete'.

static void	defaultControlMenuPaste (Fl_Widget , void )
	Default callback function to support CControl default menu item 'Paste'.

static void	defaultControlMenuClear (Fl_Widget , void )
	Default callback function to support CControl default menu item 'Clear'.

Static Public Attributes inherited from sptk::CControl
static const Fl_Menu_Item	defaultControlMenu []
	CControl default menu.

Detailed Description

List view widget.

Class CListView is the list of multicolumn rows. It allows to sort rows by column, supports type-in incremental search etc.

Constructor & Destructor Documentation

◆ CListView()

sptk::CListView::CListView	(	const char *	label = `nullptr`,
		int	layoutSize = `20`,
		CLayoutAlign	layoutAlign = `CLayoutAlign::TOP`
	)

Constructor in SPTK style.

Parameters

label	const char *, label
layoutSize	int, widget align in layout
layoutAlign	CLayoutAlign, widget align in layout

Member Function Documentation

◆ activate_row()

bool sptk::CListView::activate_row ( uint32_t index )

protected

Selects the row. Executes the callbacks. Internal.

Parameters

index int, row number

Returns: true if success

◆ addColumn() [1/2]

void sptk::CListView::addColumn ( const CColumn & column )

inline

Adds a new column as a copy of column.

Parameters

column const CColumn&, new column information

◆ addColumn() [2/2]

void sptk::CListView::addColumn	(	const String &	colname,
		VariantDataType	type,
		uint32_t	cwidth = `100`,
		bool	cvisible = `true`
	)

inline

Adds a new column as a copy of column.

Parameters

colname	const char *, column name
type	VariantType, column data type
cwidth	uint32_t, column width
cvisible	bool, is the column visible?

◆ addRow() [1/2]

virtual void sptk::CListView::addRow ( CPackedStrings * row )

virtual

Adds new row.

Optional row ID may be defined inside row parameter.

Parameters

row Row data

◆ addRow() [2/2]

virtual void sptk::CListView::addRow	(	int	ident,
		const Strings &	row
	)

virtual

Adds new row.

Optional row ID may be defined inside row parameter, or through ident parameter.

Parameters

ident	int, row argument (key value)
row	const Strings&, row data

◆ bbox()

void sptk::CListView::bbox	(	int &	X,
		int &	Y,
		int &	W,
		int &	H
	)		const

protected

Returns the actual size of the drawing area (internal)

Parameters

X	int, output, x-xoordinate
Y	int, output, y-xoordinate
W	int, output, width
H	int, output, height

◆ capitalizeColumnNames()

void sptk::CListView::capitalizeColumnNames ( bool ccn )

inline

Defines if column names should be auto-capitilized.

Parameters

ccn	bool, true if column names should be auto-capitilized

◆ className()

String sptk::CListView::className ( ) const

inlineoverridevirtual

Returns widget class name (internal SPTK RTTI).

Reimplemented from sptk::CControl.

◆ column() [1/2]

CColumn & sptk::CListView::column ( const char * colname )

Returns column informartion.

Parameters

colname const char *, column name

◆ column() [2/2]

CColumn & sptk::CListView::column ( uint32_t col )

inline

Returns column informartion.

Parameters

col	uint32_t, column number 0..columnCount() -1

◆ columnAt()

int sptk::CListView::columnAt ( int x )

protected

Computes which column contains x-coordinate.

Parameters

x	int, coordinate

Returns: column number

◆ columns()

void sptk::CListView::columns ( const CColumnList & columns )

Sets a new column list.

Parameters

columns const CColumnList&, new column list

◆ data() [1/2]

Variant sptk::CListView::data ( ) const

overridevirtual

The universal data connector,

Returns: control data

Reimplemented from sptk::CControl.

◆ data() [2/2]

void sptk::CListView::data ( const Variant & v )

overridevirtual

The universal data connector, selects row with user data

Parameters

v	const CVariant, user data value to find and select

Reimplemented from sptk::CControl.

◆ dataMode() [1/2]

CListViewDataMode sptk::CListView::dataMode ( ) const

inline

Returns data mode as LV_DATA_KEY, LV_DATA_INDEX, LV_DATA_CAPTION. Defines which information list view is working with in data() method - key value, item index, or item caption.

See also: CListViewDataMode for more information

◆ dataMode() [2/2]

void sptk::CListView::dataMode ( CListViewDataMode dm )

inline

Sets data mode for the data() methods as LV_DATA_KEY, LV_DATA_INDEX, LV_DATA_CAPTION. Defines which information list view is working with in data() method - key value, item index, or item caption.

See also: CListViewDataMode for more information

Referenced by sptk::CBaseListBox::dataMode().

◆ displayed()

bool sptk::CListView::displayed ( uint32_t index ) const

Returns true if the row is currently visible in the scroll area

Parameters

index int, row number

◆ displayRow()

virtual void sptk::CListView::displayRow ( uint32_t index )

virtual

Makes the row visible in the scroll area

Parameters

index int, row number

◆ fill()

void sptk::CListView::fill	(	DataSource &	ds,
		const String &	keyFieldName = `""`,
		uint32_t	recordsLimit = `0`,
		uint32_t	recordsEstimated = `0`,
		CRefreshKind	refreshKind = `CRefreshKind::LV_REFRESH_FULL`
	)

Fills the list view with the data from datasource.

Uses all available datasource information about column and data types.

Parameters

ds	CDataSource&, the datasource
keyFieldName	std::string, field used to fill in key values
recordsLimit	uint32_t, maximum records to retrieve
recordsEstimated	uint32_t, records estimated (to use the fill progression event)
refreshKind	CRefreshKind, type of refresh - full or just changed records

See also: CRefreshKind; CDataSource

◆ find_id()

int sptk::CListView::find_id ( int id ) const

protected

Finds item with ID.

Parameters

id	int, item id

Returns: row number, or -1 if not found

◆ find_item()

int sptk::CListView::find_item ( int y )

protected

Finds an item in vertical position y.

Parameters

y	int, vertical position

Returns: row number, or -1 if not found

◆ findCaption()

CPackedStrings * sptk::CListView::findCaption ( const String & caption )

Finds an item with the caption (a string in the first column).

Parameters

caption std::string, the caption to find and select.

Returns: an item, or NULL if item caption is not found

Referenced by sptk::CBaseListBox::findCaption().

◆ findKey()

CPackedStrings * sptk::CListView::findKey ( int keyValue )

Finds an item with the key (an integer associated with the item - argument()).

Parameters

keyValue int, the caption to find and select.

Returns: an item, or NULL if item caption is not found

Referenced by sptk::CBaseListBox::findKey().

◆ findString()

virtual int sptk::CListView::findString	(	const std::string &	str,
		bool	select = `true`,
		uint32_t	startRow = `0`,
		uint32_t	endRow = `0`
	)

virtual

Finds a string in the sort column of list view defined with sortColumn()

Parameters

str	std::string, string to find
select	bool, true if we want to select the found row
startRow	uint32_t, the row number to start
endRow	uint32_t, the row number to finish

Returns: the row number, or -1 if not found

◆ header_clicked()

virtual void sptk::CListView::header_clicked ( int x )

protectedvirtual

Header clicked mouse callback.

Parameters

x	int, x-coordinate

◆ header_dragged()

virtual void sptk::CListView::header_dragged ( int x )

protectedvirtual

Header dragged to position x notification.

Parameters

x	int, x-coordinate

◆ header_draw()

virtual void sptk::CListView::header_draw	(	int	x,
		int	y,
		int	hh
	)		const

protectedvirtual

Draws header (internal)

Parameters

x	int, x-coordinate
y	int, y-coordinate
hh	int, header height

◆ header_released()

virtual void sptk::CListView::header_released ( int x )

protectedvirtual

Header released in position x notification.

Parameters

x	int, x-coordinate

◆ hide() [1/2]

void sptk::CListView::hide ( )

inlineoverride

Hides the list view widget

◆ hide() [2/2]

void sptk::CListView::hide ( int index )

Switch the visibility flag for the row index

Parameters

index int, row number

◆ hposition()

void sptk::CListView::hposition ( int hpos )

protected

Sets horizontal position of the scroll.

Parameters

hpos	int, new horizontal position

◆ imageCollection()

void sptk::CListView::imageCollection ( Strings & iconNames )

Sets the images that may be referred from items.

Parameters

iconNames Strings&, a list of icon names

◆ insertRow()

virtual void sptk::CListView::insertRow	(	uint32_t	position,
		const Strings &	row,
		int	ident
	)

virtual

Inserts new row.

Optional row argument may be defined inside row parameter, or through ident parameter.

Parameters

position	uint32_t, insert position
row	const Strings&, row data
ident	int, row argument (key value)

◆ item_clicked()

virtual void sptk::CListView::item_clicked ( int mouse_btn )

protectedvirtual

Internal mouse callback

Reimplemented in sptk::CDBDropDownListView.

◆ item_color()

virtual Fl_Color sptk::CListView::item_color	(	int	column,
		const CPackedStrings &	rowData
	)		const

protectedvirtual

The function that allows to overwrite the default text color for the cell.

Parameters

column	int, the column number
rowData	const CPackedStrings&, row

Returns: textColor()

◆ item_compute_height()

virtual int sptk::CListView::item_compute_height ( CPackedStrings * rowData )

protectedvirtual

Recomputes items height.

Parameters

rowData CPackedStrings *, item pointer

Returns: item height

◆ item_draw()

virtual void sptk::CListView::item_draw	(	uint32_t	index,
		const CPackedStrings *	rowData,
		int	x,
		int	y,
		int	w,
		int	h,
		int	focusMode,
		int	verticalAlign,
		bool	paintBackground
	)		const

protectedvirtual

Draws a row in coordinates (internal)

Parameters

index	uint32_t, row number
rowData	const CPackedStrings *, row pointer
x	int, x-coordinate
y	int, y-coordinate
w	int, width
h	int, height
focusMode	int, focus flag
verticalAlign	int, vertical align
paintBackground	bool, true if the item should paint the background

Returns: item width

◆ item_height()

virtual int sptk::CListView::item_height ( uint32_t index ) const

protectedvirtual

Recomputes items height.

Parameters

index uint32_t, row number

Returns: item height

◆ item_select()

virtual void sptk::CListView::item_select	(	uint32_t	index,
		bool	select
	)

protectedvirtual

Selects or deselects the item.

Parameters

index	uint32_t, item index
select	bool, select or deselect

◆ item_selected()

virtual bool sptk::CListView::item_selected ( uint32_t index ) const

protectedvirtual

Returns true if item is selected.

Parameters

index uint32_t, item index

◆ item_width()

virtual int sptk::CListView::item_width ( uint32_t index ) const

protectedvirtual

Returns item width.

Parameters

index uint32_t, row number

Returns: item width

◆ kind()

CControlKind sptk::CListView::kind ( ) const

inlineoverridevirtual

SPTK RTTI information.

Returns: control type as CControlKind

See also: CControlKind

Implements sptk::CControl.

References LISTBOX.

◆ load() [1/2]

void sptk::CListView::load	(	const xdoc::SNode &	node,
		CLayoutXMLmode	xmlMode
	)

overrideprotectedvirtual

Loads control data from XML.

Layout information may also include widget size and position, as well as visible() and active() states

Parameters

node	xml::Node*, the XML node
xmlMode	CLayoutXMLmode, the mode defining how the layout and/or data should be stored

Reimplemented from sptk::CControl.

◆ load() [2/2]

void sptk::CListView::load ( Query * )

overrideprotectedvirtual

Loads the key value from the query.

Reimplemented from sptk::CControl.

◆ loadList()

void sptk::CListView::loadList ( const xdoc::SNode & node )

Fills the list with the data from XML node.

The XML node should contain the columns information, and optional list items

Parameters

node	const xml::Node&, the node to load list from

◆ preferredSize()

bool sptk::CListView::preferredSize	(	int &	w,
		int &	h
	)

overridevirtual

Computes the optimal widgets size.

Parameters

w	int&, input - width offered by the program, output - width required by widget
h	int&, input - height offered by the program, output - height required by widget

Returns: true if the size is stable (doesn't depend on input sizes)

Reimplemented from sptk::CLayoutClient.

◆ redraw_line()

void sptk::CListView::redraw_line ( uint32_t index )

protected

Request to redraw line index.

Parameters

index uint32_t, row number

◆ redrawRow()

void sptk::CListView::redrawRow ( uint32_t index )

inline

Requests to redraw just one row

Parameters

index int, row number

◆ removeRow()

virtual void sptk::CListView::removeRow ( uint32_t index )

virtual

Removes row.

Parameters

index Row number

◆ resize()

void sptk::CListView::resize	(	int	x,
		int	y,
		int	w,
		int	h
	)

override

Resizes the control and inside widgets.

Parameters

x	int, x-position
y	int, y-position
w	int, width
h	int, height

◆ row()

CPackedStrings * sptk::CListView::row ( uint32_t index ) const

Returns row pointer

Parameters

index int, row number

Returns: row pointer

◆ save() [1/2]

void sptk::CListView::save	(	const xdoc::SNode &	node,
		CLayoutXMLmode	xmlMode
	)		const

overrideprotected

Saves control data to XML.

Layout information may also include widget size and position, as well as visible() and active() states

Parameters

node	xml::Node*, the XML node
xmlMode	CLayoutXMLmode, the mode defining how the layout and/or data should be stored

◆ save() [2/2]

void sptk::CListView::save ( Query * )

overrideprotectedvirtual

Saves the key value from the query.

Reimplemented from sptk::CControl.

◆ saveList()

void sptk::CListView::saveList ( const xdoc::SNode & node ) const

Saves the list data into XML node.

The XML node should contain the columns information, and optional list items

Parameters

node	const xml::Node&, the node to save list into

◆ scrollbar_width()

static void sptk::CListView::scrollbar_width ( int b )

staticprotected

Changes the default scrollbar width for the class.

Parameters

b	int, new scrollbar width

◆ select()

bool sptk::CListView::select	(	uint32_t	index,
		bool	sel = `true`,
		int	docallbacks = `false`
	)

protected

Selects the row. Internal.

Parameters

index	int, row number
sel	bool, true if select
docallbacks	bool, true if we want to call callbacks

Returns: true if success

◆ select_first()

bool sptk::CListView::select_first ( )

protected

Selects the first row. Executes the callbacks. Internal.

Returns: true if success

◆ select_last()

bool sptk::CListView::select_last ( )

protected

Selects the last row. Executes the callbacks. Internal.

Returns: true if success

◆ select_next()

bool sptk::CListView::select_next ( )

protected

Selects the next row. Executes the callbacks. Internal.

Returns: true if success

◆ select_next_page()

bool sptk::CListView::select_next_page ( )

protected

Selects the next page row. Executes the callbacks. Internal.

Returns: true if success

◆ select_only()

bool sptk::CListView::select_only	(	uint32_t	index,
		bool	docallbacks = `false`
	)

protected

Selects the only row. Internal.

Parameters

index	int, row number
docallbacks	bool, true if we want to call callbacks

Returns: true if success

◆ select_prior()

bool sptk::CListView::select_prior ( )

protected

Selects the prior row. Executes the callbacks. Internal.

Returns: true if success

◆ select_prior_page()

bool sptk::CListView::select_prior_page ( )

protected

Selects the prior page row. Executes the callbacks. Internal.

Returns: true if success

◆ selected()

int sptk::CListView::selected ( int index ) const

Is row number index selected?

Parameters

index int, row number

◆ selectedIndex()

int sptk::CListView::selectedIndex ( ) const

Returns the row number for the selected row

◆ selectedRow()

CPackedStrings * sptk::CListView::selectedRow ( ) const

Returns currently selected row, or the last selected row in case of multiple selection. Returns 0L if there is no selection.

◆ selection()

const CSelection & sptk::CListView::selection ( ) const

inline

Returns selection list

◆ selectRow()

bool sptk::CListView::selectRow	(	uint32_t	index,
		bool	sel = `true`
	)

inline

Selects a row

Parameters

index	int, row number
sel	bool, true if select

Returns: true if success

◆ show() [1/2]

void sptk::CListView::show ( )

inlineoverride

Show widget

◆ show() [2/2]

void sptk::CListView::show ( int index )

Switch the visibility flag for the row index

Parameters

index int, row number

◆ sortAscending()

void sptk::CListView::sortAscending	(	bool	ascending,
		bool	sortNow
	)

Sets the sort direction - ascending/descending.

Parameters

ascending	bool, sort direction - ascending/descending
sortNow	bool, true if you want to sort immediatedly

◆ sortColumn()

void sptk::CListView::sortColumn	(	int	column,
		bool	sortNow
	)

Sets the sort column.

Parameters

column	int, sort column number
sortNow	bool, true if you want to sort immediatedly

◆ textColor() [1/2]

Fl_Color sptk::CListView::textColor ( ) const

inlineoverridevirtual

Returns text color.

Reimplemented from sptk::CControl.

◆ textColor() [2/2]

void sptk::CListView::textColor ( Fl_Color n )

inlineoverridevirtual

Sets text color.

Reimplemented from sptk::CControl.

◆ textFont() [1/2]

Fl_Font sptk::CListView::textFont ( ) const

inlineoverridevirtual

Returns text font type.

Reimplemented from sptk::CControl.

◆ textFont() [2/2]

void sptk::CListView::textFont ( Fl_Font f )

inlineoverridevirtual

Sets text font type.

Reimplemented from sptk::CControl.

◆ textSize() [1/2]

uchar sptk::CListView::textSize ( ) const

inlineoverridevirtual

Returns text font size

Reimplemented from sptk::CControl.

◆ textSize() [2/2]

void sptk::CListView::textSize ( uchar s )

inlineoverridevirtual

Sets text font size.

Reimplemented from sptk::CControl.

◆ textValue() [1/2]

std::string sptk::CListView::textValue ( ) const

Returns the value the selected row and sort column cell

◆ textValue() [2/2]

void sptk::CListView::textValue ( const std::string & text )

Selects the row where cell in the sort column is tv

Parameters

text	CString, text to find and select

◆ top()

virtual void sptk::CListView::top ( int index )

virtual

Sets the scroll position.

Parameters

index int, top row number

◆ updateRow() [1/2]

virtual void sptk::CListView::updateRow	(	uint32_t	position,
		const Strings &	row,
		int	ident = `0`
	)

virtual

Updates a row. Optional row argument may be defined inside row parameter.

Parameters

position	uint32_t, insert position
row	const Strings&, row data
ident	int, row argument (key value)

◆ updateRow() [2/2]

virtual void sptk::CListView::updateRow	(	uint32_t	position,
		CPackedStrings *	row
	)

virtual

Updates a row.

Optional row ID may be defined inside row parameter.

Parameters

position	uint32_t, insert position
row	CPackedStrings *, row data

◆ valid()

bool sptk::CListView::valid ( ) const

inlineoverrideprotectedvirtual

True if the data is valid.

Implements sptk::CControl.

◆ visible() [1/2]

int sptk::CListView::visible ( ) const

inline

Is the widget visible?

◆ visible() [2/2]

int sptk::CListView::visible ( int index ) const

Is the row visible?

Parameters

index int, row number

Member Data Documentation

◆ m_activeRow

uint32_t sptk::CListView::m_activeRow {0}

protected

The row where the focus is or should be

◆ m_autoRowHeight

bool sptk::CListView::m_autoRowHeight {false}

protected

Auto row height on/off

◆ m_capitalizeColumnNames

bool sptk::CListView::m_capitalizeColumnNames {false}

protected

Should the column headers to be capitilized?

◆ m_columnList

CColumnList sptk::CListView::m_columnList

protected

The list of columns

◆ m_currentTextFont

int sptk::CListView::m_currentTextFont {0}

protected

Text font, currently used to draw the list view

◆ m_currentTextSize

int sptk::CListView::m_currentTextSize {0}

protected

Text size, currently used to draw the list view

◆ m_dataMode

CListViewDataMode sptk::CListView::m_dataMode {CListViewDataMode::LV_DATA_UNDEFINED}

protected

Data mode Defines the kind of data to work through data() method.

See also: CListViewDataMode for more information

◆ m_draggingColumn

int sptk::CListView::m_draggingColumn {0}

protected

Dragged column

◆ m_draggingStarted

int sptk::CListView::m_draggingStarted {0}

protected

Dragging column started

◆ m_headerHeight

uint32_t sptk::CListView::m_headerHeight {0}

protected

The height of the header area

◆ m_horizPosition

int sptk::CListView::m_horizPosition {0}

protected

The horizontal position - to be

◆ m_iconNames

Strings sptk::CListView::m_iconNames

protected

Icon names that may be referred from items (icon size is 16)

◆ m_maxWidth

int sptk::CListView::m_maxWidth {0}

protected

The maximum required width for the columns

◆ m_mousePressedX

int sptk::CListView::m_mousePressedX {0}

protected

The mouse pressed position

◆ m_multipleSelection

bool sptk::CListView::m_multipleSelection {false}

protected

Is multiple selection allowed?

◆ m_realHorizPosition

int sptk::CListView::m_realHorizPosition {0}

protected

The horizontal position - existing

◆ m_redraw1

int sptk::CListView::m_redraw1 {0}

protected

The minimal update pointer

◆ m_redraw2

int sptk::CListView::m_redraw2 {0}

protected

The minimal update pointer

◆ m_rows

CListViewRows sptk::CListView::m_rows

protected

The list of rows

◆ m_scrollbarWidth

int sptk::CListView::m_scrollbarWidth

staticprotected

Scrollbar width for this class of object

◆ m_searchPhrase

std::string sptk::CListView::m_searchPhrase

protected

Type-in search buffer

◆ m_selection

CSelection sptk::CListView::m_selection

protected

The list of currently selected items

◆ m_showGrid

bool sptk::CListView::m_showGrid {false}

protected

Show/hide cell grid. Grid is an alternative to stripes.

◆ m_showSelection

bool sptk::CListView::m_showSelection {false}

protected

Show/hide selection

◆ m_showStripes

bool sptk::CListView::m_showStripes {false}

protected

Show/hide horizontal stripes. Stripes is an alternative to cell grid.

◆ m_textColor

Fl_Color sptk::CListView::m_textColor {0}

protected

The text font color

◆ m_textFont

Fl_Font sptk::CListView::m_textFont {0}

protected

The text font type

◆ m_textSize

uchar sptk::CListView::m_textSize {0}

protected

The text font size

◆ m_top

uint32_t sptk::CListView::m_top {0}

protected

The scrolling position

The documentation for this class was generated from the following file:

CListView.h

Public Member Functions

Protected Member Functions

Static Protected Member Functions

Protected Attributes

Static Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ CListView()

Member Function Documentation

◆ activate_row()

◆ addColumn() [1/2]

◆ addColumn() [2/2]

◆ addRow() [1/2]

◆ addRow() [2/2]

◆ bbox()

◆ capitalizeColumnNames()

◆ className()

◆ column() [1/2]

◆ column() [2/2]

◆ columnAt()

◆ columns()

◆ data() [1/2]

◆ data() [2/2]

◆ dataMode() [1/2]

◆ dataMode() [2/2]

◆ displayed()

◆ displayRow()

◆ fill()

◆ find_id()

◆ find_item()

◆ findCaption()

◆ findKey()

◆ findString()

◆ header_clicked()

◆ header_dragged()

◆ header_draw()

◆ header_released()

◆ hide() [1/2]

◆ hide() [2/2]

◆ hposition()

◆ imageCollection()

◆ insertRow()

◆ item_clicked()

◆ item_color()

◆ item_compute_height()

◆ item_draw()

◆ item_height()

◆ item_select()

◆ item_selected()

◆ item_width()

◆ kind()

◆ load() [1/2]

◆ load() [2/2]

◆ loadList()

◆ preferredSize()

◆ redraw_line()

◆ redrawRow()

◆ removeRow()

◆ resize()

◆ row()

◆ save() [1/2]

◆ save() [2/2]

◆ saveList()

◆ scrollbar_width()

◆ select()

◆ select_first()

◆ select_last()

◆ select_next()

◆ select_next_page()

◆ select_only()

◆ select_prior()

◆ select_prior_page()

◆ selected()

◆ selectedIndex()

◆ selectedRow()

◆ selection()

◆ selectRow()

◆ show() [1/2]
