sptk::TCPSocket Class Reference

#include <TCPSocket.h>

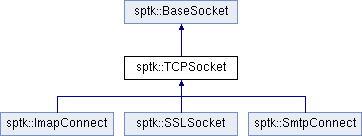

Inheritance diagram for sptk::TCPSocket:

Public Member Functions
	TCPSocket (SOCKET_ADDRESS_FAMILY domain=AF_INET, int32_t type=SOCK_STREAM, int32_t protocol=0)
	~TCPSocket () override
void	setProxy (std::shared_ptr< Proxy > proxy)
void	close () noexcept override
virtual bool	accept (SOCKET &clientSocketFD, struct sockaddr_in &clientInfo, std::chrono::milliseconds timeout)
size_t	socketBytes () override
bool	readyToRead (std::chrono::milliseconds timeout) override
size_t	readLine (char *buffer, size_t size, char delimiter='\n')
size_t	readLine (Buffer &buffer, char delimiter='\n')
size_t	readLine (String &s, char delimiter='\n')
size_t	read (uint8_t *buffer, size_t size, sockaddr_in *from=nullptr) override
size_t	read (Buffer &buffer, size_t size, sockaddr_in *from=nullptr) override
size_t	read (String &buffer, size_t size, sockaddr_in *from=nullptr) override
template<typename T >
size_t	read (T &value, sockaddr_in *from=nullptr)
Public Member Functions inherited from sptk::BaseSocket
SOCKET	fd () const
void	open_addr (OpenMode openMode=OpenMode::CREATE, const sockaddr_in *addr=nullptr, std::chrono::milliseconds timeout=std::chrono::milliseconds(0))
	BaseSocket (SOCKET_ADDRESS_FAMILY domain=AF_INET, int32_t type=SOCK_STREAM, int32_t protocol=0)
	BaseSocket (const BaseSocket &other)=delete
	BaseSocket (BaseSocket &&other) noexcept=default
virtual	~BaseSocket ()
	Destructor.
BaseSocket &	operator= (const BaseSocket &other)=delete
BaseSocket &	operator= (BaseSocket &&other) noexcept=default
void	blockingMode (bool blocking)
virtual size_t	socketBytes ()
virtual void	attach (SOCKET socketHandle, bool accept)
virtual SOCKET	detach ()
void	host (const Host &host)
const Host &	host () const
void	open (const Host &host=Host(), OpenMode openMode=OpenMode::CONNECT, bool blockingMode=true, std::chrono::milliseconds timeoutMS=std::chrono::milliseconds(0))
void	open (const struct sockaddr_in &address, OpenMode openMode=OpenMode::CONNECT, bool blockingMode=true, std::chrono::milliseconds timeoutMS=std::chrono::milliseconds(0))
void	bind (const char *address, uint32_t portNumber)
void	listen (uint16_t portNumber=0)
virtual void	close () noexcept
bool	active () const
int32_t	control (int flag, const uint32_t *check) const
void	setOption (int level, int option, int value) const
void	getOption (int level, int option, int &value) const
virtual size_t	recv (uint8_t *buffer, size_t len)
virtual size_t	send (const uint8_t *buffer, size_t len)
virtual size_t	read (uint8_t *buffer, size_t size, sockaddr_in *from)
virtual size_t	read (uint8_t *buffer, size_t size)
virtual size_t	read (Buffer &buffer, size_t size, sockaddr_in *from)
size_t	read (Buffer &buffer, size_t size)
virtual size_t	read (String &buffer, size_t size, sockaddr_in *from)
size_t	read (String &buffer, size_t size)
virtual size_t	write (const uint8_t *buffer, size_t size, const sockaddr_in *peer)
size_t	write (const uint8_t *buffer, size_t size)
virtual size_t	write (const Buffer &buffer, const sockaddr_in *peer)
size_t	write (const Buffer &buffer)
virtual size_t	write (const String &buffer, const sockaddr_in *peer)
size_t	write (const String &buffer)
virtual bool	readyToRead (std::chrono::milliseconds timeout)
virtual bool	readyToWrite (std::chrono::milliseconds timeout)
bool	blockingMode () const
	Return current blocking mode state. More...

Protected Member Functions
TCPSocketReader &	reader ()
void	_open (const Host &host, OpenMode openMode, bool blockingMode, std::chrono::milliseconds timeout) override
void	_open (const struct sockaddr_in &address, OpenMode openMode, bool blockingMode, std::chrono::milliseconds timeout) override
Proxy *	proxy ()
Protected Member Functions inherited from sptk::BaseSocket
void	setSocketFD (SOCKET socket)
int32_t	domain () const
int32_t	type () const
int32_t	protocol () const
virtual void	_open (const Host &host, OpenMode openMode, bool blockingMode, std::chrono::milliseconds timeoutMS)
virtual void	_open (const struct sockaddr_in &address, OpenMode openMode, bool blockingMode, std::chrono::milliseconds timeoutMS)

Additional Inherited Members
Public Types inherited from sptk::BaseSocket
enum class	OpenMode : uint8_t { CREATE , CONNECT , BIND }

Detailed Description

Generic TCP socket.

Allows to establish a network connection to the host by name and port address

Constructor & Destructor Documentation

TCPSocket()

sptk::TCPSocket::TCPSocket ( SOCKET_ADDRESS_FAMILY  domain = AF_INET, int32_t  type = SOCK_STREAM, int32_t  protocol = 0  )

explicit

Constructor

Parameters

domain	Socket domain type
type	Socket type
protocol	Protocol type

~TCPSocket()

sptk::TCPSocket::~TCPSocket ( )

override

Destructor

Member Function Documentation

_open() [1/2]

void sptk::TCPSocket::_open ( const Host &  host, OpenMode  openMode, bool  blockingMode, std::chrono::milliseconds  timeout  )

overrideprotectedvirtual

Opens the client socket connection by host and port

Parameters

host	The host
openMode	Socket open mode
blockingMode	Socket blocking (true) on non-blocking (false) mode
timeout	Connection timeout. The default is 0 (wait forever)

Reimplemented from sptk::BaseSocket.

_open() [2/2]

void sptk::TCPSocket::_open ( const struct sockaddr_in &  address, OpenMode  openMode, bool  blockingMode, std::chrono::milliseconds  timeout  )

overrideprotectedvirtual

Opens the client socket connection by host and port

Parameters

address	Address and port
openMode	Socket open mode
blockingMode	Socket blocking (true) on non-blocking (false) mode
timeout	Connection timeout. The default is 0 (wait forever)

Reimplemented from sptk::BaseSocket.

accept()

virtual bool sptk::TCPSocket::accept ( SOCKET &  clientSocketFD, struct sockaddr_in &  clientInfo, std::chrono::milliseconds  timeout  )

virtual

In server mode, waits for the incoming connection.

When incoming connection is made, exits returning the connection info

Parameters

clientSocketFD	Connected client socket FD
clientInfo	Connected client info
timeout	Accept operation timeout

Returns

True if accepted a connection

close()

void sptk::TCPSocket::close ( )

overridevirtualnoexcept

Close socket connection

Reimplemented from sptk::BaseSocket.

Referenced by sptk::TCPServerConnection::terminate(), and sptk::WSProtocol::~WSProtocol().

proxy()

Proxy * sptk::TCPSocket::proxy ( )

inlineprotected

Get proxy information

Returns

read() [1/3]

size_t sptk::TCPSocket::read ( Buffer &  buffer, size_t  size, sockaddr_in *  from = nullptr  )

overridevirtual

Reads data from the socket into memory buffer

Buffer bytes() is set to number of bytes read

Parameters

buffer	The memory buffer
size	Number of bytes to read from socket
from	An optional structure for source address

Returns

the number of bytes read from the socket

Reimplemented from sptk::BaseSocket.

read() [2/3]

size_t sptk::TCPSocket::read ( String &  buffer, size_t  size, sockaddr_in *  from = nullptr  )

overridevirtual

Reads data from the socket into memory buffer

Buffer bytes() is set to number of bytes read

Parameters

buffer	The memory buffer
size	Number of bytes to read from socket
from	An optional structure for source address

Returns

the number of bytes read from the socket

Reimplemented from sptk::BaseSocket.

read() [3/3]

size_t sptk::TCPSocket::read ( uint8_t *  buffer, size_t  size, sockaddr_in *  from = nullptr  )

overridevirtual

Reads data from the socket

Parameters

buffer	The memory buffer
size	The number of bytes to read
from	An optional structure for source address

Returns

the number of bytes read from the socket

Reimplemented from sptk::BaseSocket.

reader()

TCPSocketReader & sptk::TCPSocket::reader ( )

inlineprotected

Access to internal socket reader for derived classes

Returns

internal socket reader

readLine() [1/3]

size_t sptk::TCPSocket::readLine	(	Buffer &	buffer,
		char	delimiter = '\n'
	)

Reads one line (terminated with CRLF) from the socket into existing memory buffer

The memory buffer is extended automatically to fit the string.

Parameters

buffer	The destination buffer
delimiter	Line delimiter

Returns

the number of bytes read from the socket

readLine() [2/3]

size_t sptk::TCPSocket::readLine	(	char *	buffer,
		size_t	size,
		char	delimiter = '\n'
	)

Reads one line from the socket into existing memory buffer

The output string should fit the buffer or it will be returned incomplete.

Parameters

buffer	The destination buffer
size	The destination buffer size
delimiter	Line delimiter

Returns

the number of bytes read from the socket

readLine() [3/3]

size_t sptk::TCPSocket::readLine	(	String &	s,
		char	delimiter = '\n'
	)

Reads one line (terminated with CRLF) from the socket into string

Parameters

s	The destination string
delimiter	Line delimiter

Returns

the number of bytes read from the socket

readyToRead()

bool sptk::TCPSocket::readyToRead ( std::chrono::milliseconds  timeout )

overridevirtual

Reports true if socket is ready for reading from it

Parameters

timeout

Read timeout

Reimplemented from sptk::BaseSocket.

setProxy()

void sptk::TCPSocket::setProxy

(

std::shared_ptr< Proxy >

proxy

)

Set proxy

Parameters

proxy

Proxy.

socketBytes()

size_t sptk::TCPSocket::socketBytes ( )

overridevirtual

Returns number of bytes available in socket

Reimplemented from sptk::BaseSocket.

---

The documentation for this class was generated from the following file:

• TCPSocket.h
