#include <BaseSocket.h>

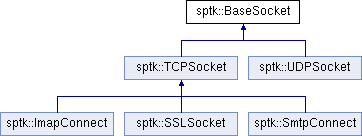

Inheritance diagram for sptk::BaseSocket:

Public Types
enum class	OpenMode : uint8_t { CREATE , CONNECT , BIND }

Public Member Functions
SOCKET	fd () const

void	open_addr (OpenMode openMode=OpenMode::CREATE, const sockaddr_in *addr=nullptr, std::chrono::milliseconds timeout=std::chrono::milliseconds(0))

	BaseSocket (SOCKET_ADDRESS_FAMILY domain=AF_INET, int32_t type=SOCK_STREAM, int32_t protocol=0)

	BaseSocket (const BaseSocket &other)=delete

	BaseSocket (BaseSocket &&other) noexcept=default

virtual	~BaseSocket ()
	Destructor.

BaseSocket &	operator= (const BaseSocket &other)=delete

BaseSocket &	operator= (BaseSocket &&other) noexcept=default

void	blockingMode (bool blocking)

virtual size_t	socketBytes ()

virtual void	attach (SOCKET socketHandle, bool accept)

virtual SOCKET	detach ()

void	host (const Host &host)

const Host &	host () const

void	open (const Host &host=Host(), OpenMode openMode=OpenMode::CONNECT, bool blockingMode=true, std::chrono::milliseconds timeoutMS=std::chrono::milliseconds(0))

void	open (const struct sockaddr_in &address, OpenMode openMode=OpenMode::CONNECT, bool blockingMode=true, std::chrono::milliseconds timeoutMS=std::chrono::milliseconds(0))

void	bind (const char *address, uint32_t portNumber)

void	listen (uint16_t portNumber=0)

virtual void	close () noexcept

bool	active () const

int32_t	control (int flag, const uint32_t *check) const

void	setOption (int level, int option, int value) const

void	getOption (int level, int option, int &value) const

virtual size_t	recv (uint8_t *buffer, size_t len)

virtual size_t	send (const uint8_t *buffer, size_t len)

virtual size_t	read (uint8_t buffer, size_t size, sockaddr_in from)

virtual size_t	read (uint8_t *buffer, size_t size)

virtual size_t	read (Buffer &buffer, size_t size, sockaddr_in *from)

size_t	read (Buffer &buffer, size_t size)

virtual size_t	read (String &buffer, size_t size, sockaddr_in *from)

size_t	read (String &buffer, size_t size)

virtual size_t	write (const uint8_t buffer, size_t size, const sockaddr_in peer)

size_t	write (const uint8_t *buffer, size_t size)

virtual size_t	write (const Buffer &buffer, const sockaddr_in *peer)

size_t	write (const Buffer &buffer)

virtual size_t	write (const String &buffer, const sockaddr_in *peer)

size_t	write (const String &buffer)

virtual bool	readyToRead (std::chrono::milliseconds timeout)

virtual bool	readyToWrite (std::chrono::milliseconds timeout)

bool	blockingMode () const
	Return current blocking mode state. More...

Protected Member Functions
void	setSocketFD (SOCKET socket)

int32_t	domain () const

int32_t	type () const

int32_t	protocol () const

virtual void	_open (const Host &host, OpenMode openMode, bool blockingMode, std::chrono::milliseconds timeoutMS)

virtual void	_open (const struct sockaddr_in &address, OpenMode openMode, bool blockingMode, std::chrono::milliseconds timeoutMS)

Detailed Description

Generic socket.

Allows establishing a network connection to the host by name and port address

Member Enumeration Documentation

◆ OpenMode

enum class sptk::BaseSocket::OpenMode : uint8_t

strong

A mode to open a socket, one of

Enumerator
CREATE	Only create (Typical UDP connectionless socket)
CONNECT	Connect (Typical TCP connection socket)
BIND	Bind (TCP listener)

Constructor & Destructor Documentation

◆ BaseSocket() [1/3]

sptk::BaseSocket::BaseSocket	(	SOCKET_ADDRESS_FAMILY	domain = `AF_INET`,
		int32_t	type = `SOCK_STREAM`,
		int32_t	protocol = `0`
	)

explicit

Constructor

Parameters

domain	Socket domain type
type	Socket type
protocol	Protocol type

◆ BaseSocket() [2/3]

sptk::BaseSocket::BaseSocket ( const BaseSocket & other )

delete

Deleted copy constructor

Parameters

other Other socket

◆ BaseSocket() [3/3]

sptk::BaseSocket::BaseSocket ( BaseSocket && other )

defaultnoexcept

Move constructor

Parameters

other Other socket

Member Function Documentation

◆ _open() [1/2]

virtual void sptk::BaseSocket::_open	(	const Host &	host,
		OpenMode	openMode,
		bool	blockingMode,
		std::chrono::milliseconds	timeoutMS
	)

protectedvirtual

Opens the client socket connection by host and port

Parameters

host	The host
openMode	Socket open mode
blockingMode	Socket blocking (true) on non-blocking (false) mode
timeoutMS	Connection timeout. The default is 0 (wait forever)

Reimplemented in sptk::SSLSocket, and sptk::TCPSocket.

◆ _open() [2/2]

virtual void sptk::BaseSocket::_open	(	const struct sockaddr_in &	address,
		OpenMode	openMode,
		bool	blockingMode,
		std::chrono::milliseconds	timeoutMS
	)

inlineprotectedvirtual

Opens the client socket connection by host and port

Parameters

address	Address and port
openMode	Socket open mode
blockingMode	Socket blocking (true) on non-blocking (false) mode
timeoutMS	Connection timeout, std::chrono::milliseconds. The default is 0 (wait forever)

Reimplemented in sptk::SSLSocket, and sptk::TCPSocket.

◆ active()

bool sptk::BaseSocket::active ( ) const

inline

Returns the current socket state

Returns: true if socket is opened

◆ attach()

virtual void sptk::BaseSocket::attach	(	SOCKET	socketHandle,
		bool	accept
	)

virtual

Attaches socket handle

Parameters

socketHandle Existing socket handle

Reimplemented in sptk::SSLSocket.

Referenced by sptk::TCPServerConnection::TCPServerConnection().

◆ bind()

void sptk::BaseSocket::bind	(	const char *	address,
		uint32_t	portNumber
	)

Binds the socket to port

Parameters

address	Local IP address, or NULL if any
portNumber	The port number, or 0 if any

◆ blockingMode() [1/2]

bool sptk::BaseSocket::blockingMode ( ) const

inline

Return current blocking mode state.

Returns: Current blocking mode state

◆ blockingMode() [2/2]

void sptk::BaseSocket::blockingMode ( bool blocking )

Set blocking mode

Parameters

blocking Socket blocking mode flag

◆ close()

virtual void sptk::BaseSocket::close ( )

virtualnoexcept

Closes the socket connection

Reimplemented in sptk::SSLSocket, and sptk::TCPSocket.

◆ control()

int32_t sptk::BaseSocket::control	(	int	flag,
		const uint32_t *	check
	)		const

Calls Unix fcntl() or Windows ioctlsocket()

◆ detach()

virtual SOCKET sptk::BaseSocket::detach ( )

virtual

Detaches socket handle, setting it to INVALID_SOCKET. Closes the socket without affecting socket handle.

Returns: Existing socket handle

◆ domain()

int32_t sptk::BaseSocket::domain ( ) const

inlineprotected

Get socket domain type

◆ fd()

SOCKET sptk::BaseSocket::fd ( ) const

inline

Get socket internal (OS) handle

◆ getOption()

void sptk::BaseSocket::getOption	(	int	level,
		int	option,
		int &	value
	)		const

Gets socket option value

Throws an error if not succeeded

◆ host() [1/2]

const Host & sptk::BaseSocket::host ( ) const

inline

Returns the host

◆ host() [2/2]

void sptk::BaseSocket::host ( const Host & host )

Sets the host name

Parameters

host The host

Referenced by sptk::TCPServerListener::port().

◆ listen()

void sptk::BaseSocket::listen ( uint16_t portNumber = 0 )

Opens the server socket connection on port (binds/listens)

Parameters

portNumber The port number

Referenced by sptk::TCPServerListener::listen().

◆ open() [1/2]

void sptk::BaseSocket::open	(	const Host &	host = `Host()`,
		OpenMode	openMode = `OpenMode::CONNECT`,
		bool	blockingMode = `true`,
		std::chrono::milliseconds	timeoutMS = `std::chrono::milliseconds(0)`
	)

inline

Opens the client socket connection by host and port

Parameters

host	The host
openMode	Socket open mode
blockingMode	Socket blocking (true) on non-blocking (false) mode
timeoutMS	Connection timeout. The default is 0 (wait forever)

◆ open() [2/2]

void sptk::BaseSocket::open	(	const struct sockaddr_in &	address,
		OpenMode	openMode = `OpenMode::CONNECT`,
		bool	blockingMode = `true`,
		std::chrono::milliseconds	timeoutMS = `std::chrono::milliseconds(0)`
	)

inline

Opens the client socket connection by host and port

Parameters

address	Address and port
openMode	Socket open mode
blockingMode	Socket blocking (true) on non-blocking (false) mode
timeoutMS	Connection timeout, std::chrono::milliseconds. The default is 0 (wait forever)

◆ open_addr()

void sptk::BaseSocket::open_addr	(	OpenMode	openMode = `OpenMode::CREATE`,
		const sockaddr_in *	addr = `nullptr`,
		std::chrono::milliseconds	timeout = `std::chrono::milliseconds(0)`
	)

Opens the socket connection by address.

Parameters

openMode	SOM_CREATE for UDP socket, SOM_BIND for the server socket, and SOM_CONNECT for the client socket
addr	Defines socket address/port information
timeout	Connection timeout. If 0 then wait forever.

◆ operator=() [1/2]

BaseSocket & sptk::BaseSocket::operator= ( BaseSocket && other )

defaultnoexcept

Move assignment

Parameters

other Other socket

◆ operator=() [2/2]

BaseSocket & sptk::BaseSocket::operator= ( const BaseSocket & other )

delete

Deleted copy assignment

Parameters

other Other socket

◆ protocol()

int32_t sptk::BaseSocket::protocol ( ) const

inlineprotected

Get socket protocol

◆ read() [1/6]

size_t sptk::BaseSocket::read	(	Buffer &	buffer,
		size_t	size
	)

inline

Reads data from the socket into memory buffer

Buffer bytes() is set to number of bytes read

Parameters

buffer	The output buffer
size	The number of bytes to read

Returns: the number of bytes read from the socket

◆ read() [2/6]

virtual size_t sptk::BaseSocket::read	(	Buffer &	buffer,
		size_t	size,
		sockaddr_in *	from
	)

virtual

Reads data from the socket into memory buffer

Buffer bytes() is set to number of bytes read

Parameters

buffer	The output buffer
size	The number of bytes to read
from	The source address

Returns: the number of bytes read from the socket

Reimplemented in sptk::TCPSocket, and sptk::UDPSocket.

◆ read() [3/6]

size_t sptk::BaseSocket::read	(	String &	buffer,
		size_t	size
	)

inline

Reads data from the socket into memory buffer

Buffer bytes() is set to number of bytes read

Parameters

buffer	The memory buffer
size	The number of bytes to read

Returns: the number of bytes read from the socket

◆ read() [4/6]

virtual size_t sptk::BaseSocket::read	(	String &	buffer,
		size_t	size,
		sockaddr_in *	from
	)

virtual

Reads data from the socket into memory buffer

Buffer bytes() is set to number of bytes read

Parameters

buffer	The memory buffer
size	The number of bytes to read
from	The source address

Returns: the number of bytes read from the socket

Reimplemented in sptk::TCPSocket, and sptk::UDPSocket.

◆ read() [5/6]

virtual size_t sptk::BaseSocket::read	(	uint8_t *	buffer,
		size_t	size
	)

inlinevirtual

Reads data from the socket

Parameters

buffer	The memory buffer
size	The number of bytes to read

Returns: the number of bytes read from the socket

◆ read() [6/6]

virtual size_t sptk::BaseSocket::read	(	uint8_t *	buffer,
		size_t	size,
		sockaddr_in *	from
	)

virtual

Reads data from the socket

Parameters

buffer	The memory buffer
size	The number of bytes to read
from	The source address

Returns: the number of bytes read from the socket

Reimplemented in sptk::TCPSocket, and sptk::UDPSocket.

◆ readyToRead()

virtual bool sptk::BaseSocket::readyToRead ( std::chrono::milliseconds timeout )

virtual

Reports true if socket is ready for reading from it

Parameters

timeout Read timeout

Reimplemented in sptk::TCPSocket.

◆ readyToWrite()

virtual bool sptk::BaseSocket::readyToWrite ( std::chrono::milliseconds timeout )

virtual

Reports true if socket is ready for writing to it

Parameters

timeout Write timeout

◆ recv()

virtual size_t sptk::BaseSocket::recv	(	uint8_t *	buffer,
		size_t	len
	)

virtual

Reads data from the socket in regular or SSL mode

Parameters

buffer	The destination buffer
len	The destination buffer size

Returns: the number of bytes read from the socket

Reimplemented in sptk::SSLSocket.

◆ send()

virtual size_t sptk::BaseSocket::send	(	const uint8_t *	buffer,
		size_t	len
	)

virtual

Reads data from the socket in regular or TLS mode

Parameters

buffer	The send buffer
len	The send data length

Returns: the number of bytes sent the socket

Reimplemented in sptk::SSLSocket.

◆ setOption()

void sptk::BaseSocket::setOption	(	int	level,
		int	option,
		int	value
	)		const

Sets socket option value Throws an error if not succeeded

◆ setSocketFD()

void sptk::BaseSocket::setSocketFD ( SOCKET socket )

inlineprotected

Set socket internal (OS) handle

◆ socketBytes()

virtual size_t sptk::BaseSocket::socketBytes ( )

virtual

Returns number of bytes available in socket

Reimplemented in sptk::SSLSocket, and sptk::TCPSocket.

◆ type()

int32_t sptk::BaseSocket::type ( ) const

inlineprotected

Get socket type

◆ write() [1/6]

size_t sptk::BaseSocket::write ( const Buffer & buffer )

inline

Writes data to the socket

Parameters

buffer The memory buffer

Returns: the number of bytes written to the socket

◆ write() [2/6]

virtual size_t sptk::BaseSocket::write	(	const Buffer &	buffer,
		const sockaddr_in *	peer
	)

virtual

Writes data to the socket

Parameters

buffer	The memory buffer
peer	The peer information

Returns: the number of bytes written to the socket

◆ write() [3/6]

size_t sptk::BaseSocket::write ( const String & buffer )

inline

Writes data to the socket

Parameters

buffer The memory buffer

Returns: the number of bytes written to the socket

◆ write() [4/6]

virtual size_t sptk::BaseSocket::write	(	const String &	buffer,
		const sockaddr_in *	peer
	)

virtual

Writes data to the socket

Parameters

buffer	The memory buffer
peer	The peer information

Returns: the number of bytes written to the socket

◆ write() [5/6]

size_t sptk::BaseSocket::write	(	const uint8_t *	buffer,
		size_t	size
	)

inline

Writes data to the socket

If size is omited then buffer is treated as zero-terminated string

Parameters

buffer	The memory buffer
size	The memory buffer size

Returns: the number of bytes written to the socket

◆ write() [6/6]

virtual size_t sptk::BaseSocket::write	(	const uint8_t *	buffer,
		size_t	size,
		const sockaddr_in *	peer
	)

virtual

Writes data to the socket

If size is omited then buffer is treated as zero-terminated string

Parameters

buffer	The memory buffer
size	The memory buffer size
peer	The peer information

Returns: the number of bytes written to the socket

The documentation for this class was generated from the following file:

BaseSocket.h

Public Types

Public Member Functions

Protected Member Functions

Detailed Description

Member Enumeration Documentation

◆ OpenMode

Constructor & Destructor Documentation

◆ BaseSocket() [1/3]

◆ BaseSocket() [2/3]

◆ BaseSocket() [3/3]

Member Function Documentation

◆ _open() [1/2]

◆ _open() [2/2]

◆ active()

◆ attach()

◆ bind()

◆ blockingMode() [1/2]

◆ blockingMode() [2/2]

◆ close()

◆ control()

◆ detach()

◆ domain()

◆ fd()

◆ getOption()

◆ host() [1/2]

◆ host() [2/2]

◆ listen()

◆ open() [1/2]

◆ open() [2/2]

◆ open_addr()

◆ operator=() [1/2]

◆ operator=() [2/2]

◆ protocol()

◆ read() [1/6]

◆ read() [2/6]

◆ read() [3/6]

◆ read() [4/6]

◆ read() [5/6]

◆ read() [6/6]

◆ readyToRead()

◆ readyToWrite()

◆ recv()

◆ send()

◆ setOption()

◆ setSocketFD()

◆ socketBytes()

◆ type()

◆ write() [1/6]

◆ write() [2/6]

◆ write() [3/6]

◆ write() [4/6]

◆ write() [5/6]

◆ write() [6/6]
